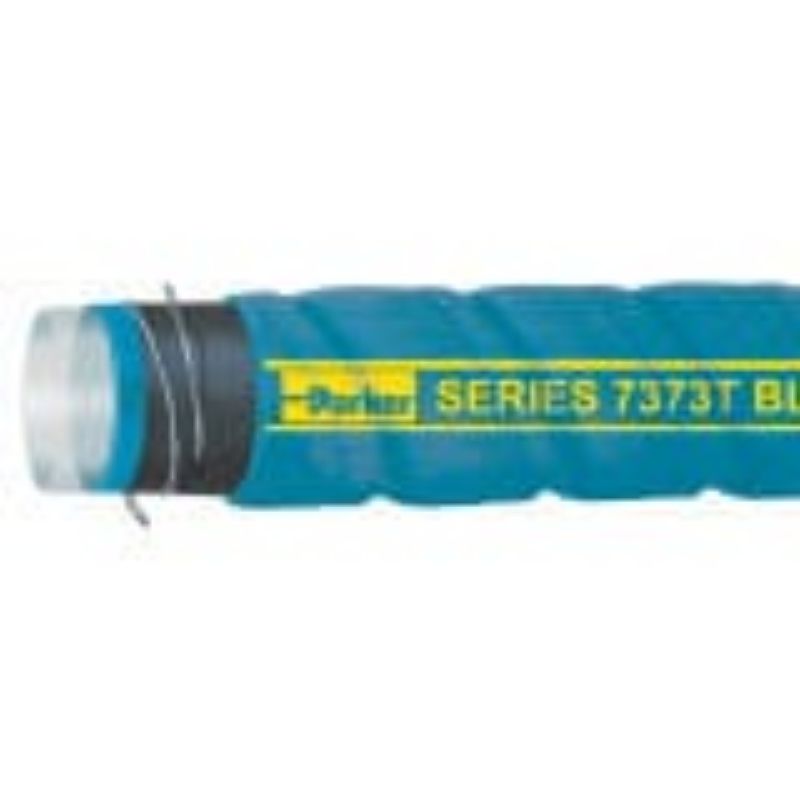

Parker 7373T-1000 - BLUE THUNDER® Large Diameter UHMWPE Corrugated Chemical Suction Hose, Series 7373T

Blue Thunder Large Diameter UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 200 psi, Series 7373T

AFP Availability:	Quote Required
Partner Available:	372 In Stock

Brand Parker

Part No. 7373T-1000

$26.28/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Maximum Operating Temperature	180 °F	Vacuum Pressure Rating	29 Inch-Hg
Cover Color	Blue	Design Factor	4:1
Package Type	Coil	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Compatible Fitting	43 Series	Media	Acids
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Specifications Met	FDA	Minimum Bend Radius	76.2 mm
Minimum Operating Temperature	-40 °C	Application	Chemical Transfer
Inside Diameter	25.4 mm	Cover Structure	Wrapped
Outside Diameter	37 mm	Length per Package	100 ft
Maximum Operating Pressure	200 psi	Weight	0.55 lb/ft
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	200
