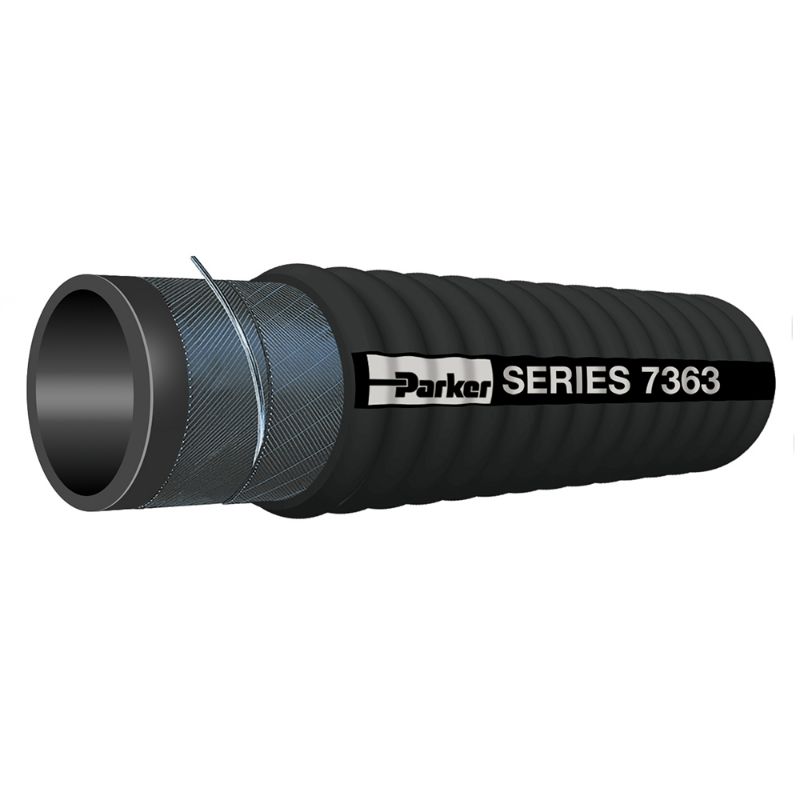

Parker 7363-2000 - SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363

Super-Flex Large Diameter Corrugated Vacuum Hose incorporates a 3/16” thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 160°F and 100 psi, Series 7363

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7363-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	100	Division	Hose Products Division
Minimum Operating Temperature	-40	Specifications Met	N/A
Package Type	Coil	Length per Package	100
Application	Material Handling	Cover Color	Black
Minimum Bend Radius	6	Inside Diameter	2
Design Factor	3:1	Vacuum Pressure Rating	Full
Cover Structure	Corrugated	Hose Reinforcement Material	3 Plies of Textile with Wire Helix
Media	Dry Abrasive Powders (Debris)	Weight	1.53
Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend	Outside Diameter	2.740
Hose Inner Tube Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend	Maximum Operating Temperature	160
Hose I.D. (inch)	2	Maximum Working Pressure (psi)	100
