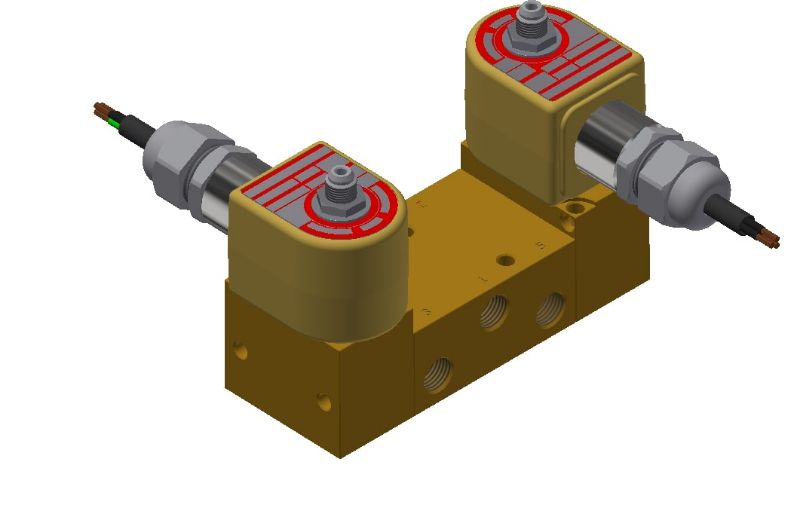

Parker 73477BN2PN00N0D100P3 - 7 Family - 4 Way (5/2) Extreme-Duty VAP Valves

Parker's VAP (Valve Actuation Process) control valves are used in the word's toughest applications where uptime and compliance are critical.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73477BN2PN00N0D100P3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Port Size	1/4 inch	Division	Fluid Control Division
Maximum Fluid Temperature	150 °F	Coil Type	DIN 43650A / ISO 4400
Maximum Pressure Differential	150.0 psi	Input Voltage	110/50 VAC
Actuation Type	Internal Pilot	Specifications Met	EMC
Ingress Protection Rating	NEMA 4	Minimum Fluid Temperature	-40 °F
Insulation Class	F (155°C)	Power Consumption	10 W
Media	Inert Gases	Valve Type	4-Way (5/2)
Seal Material	NBR - Low Temp	Main Flow Coefficient	1.2 Cv
Minimum Pressure Differential	30 psi	Installation	IOM 7505
Orifice Size	1/4 inch	Override Functionality	n/a
Maximum Ambient Temperature	167 °F	Function	Dual Solenoid
Preventive Maintenance Kit	7K706	Port Type	NPT
Body Material	BRASS	Coil Type	DIN 43650A / ISO 4400
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Insulation Class	Class F	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	150.0	Maximum Pressure Differential	150.0
Maximum Ambient Temperature	167.0	Port Size	1/4
Power Consumption	10.0	Media	Air, Inert Gas
Valve Type	4 Way (5/2)	Installation	IOM 7701
Orifice Size	1/4	Seal Material	NBR - Low Temp
Specifications Met	UL, CSA Listed General Purpose Valve; SIL 3; CE - Low Voltage, EMC	Main Flow Coefficient	1.2
Minimum Fluid Temperature	-40.0	Minimum Pressure Differential	30.0
Function	2 Position, Dual Solenoid	Preventive Maintenance Kit	7K706

Product resources

Literature and Reference Materials

Tube Seal (PDF)
