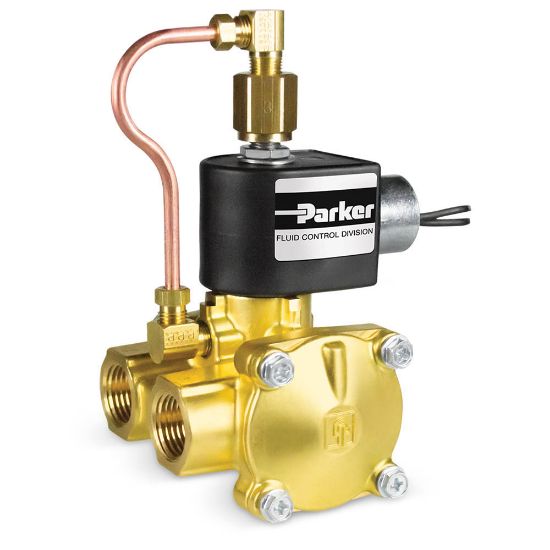

Parker 73312BN4UNJ0N0C222P3 - Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN4UNJ0N0C222P3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1/2	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	3-Way	Input Voltage	110/50-120/60
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	3	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Main Flow Coefficient	3.6	Maximum Fluid Temperature	185
Exhaust Flow Coefficient	n/a	Power Consumption	10 W (AC)
Exhaust Orifice Size	n/a	Actuation Type	Manual
Product Series	7000 Series	Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
Maximum Pressure Differential	180 psi (AC)	Minimum Pressure Differential	10
Additional Options	Exhaust Return Pipe	Main Orifice Size	1/2
Voltage (V)	110/50-120/60	Power (Watts)	10 Watt (AC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	Maximum Pressure Differential (psi)	180 psi (AC)
Mechanical Option	Exhaust Return Pipe	Orifice Main (inch)	1/2
Flow Factor Main (Cv)	3.6
