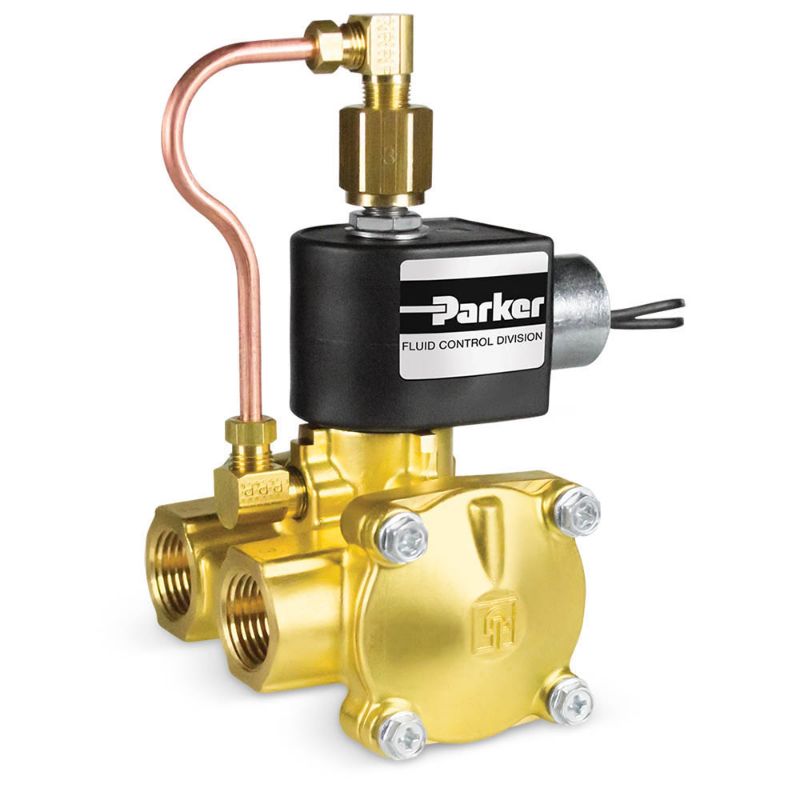

Parker 73312BN3RNJ1N0H111C2 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN3RNJ1N0H111C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Division	Fluid Control Division	Media	Liquids and Gases
Function	Normally Closed (NC)	Valve Type	3-Way
Input Voltage	24.0 VDC	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Minimum Fluid Temperature	0 °F
Port Size	3/8 inch	Maximum Fluid Temperature	185 °F
Exhaust Flow Coefficient	n/a	Exhaust Orifice Size	n/a
Actuation Type	Manual	Product Series	7000 Series
Power Consumption	10 W (DC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Additional Options	Exhaust Adapter Nut	Coil Specifications Met	NEMA 7
Maximum Pressure Differential	180 psi (DC)	Minimum Pressure Differential	10 psi
Main Orifice Size	3/8 inch	Main Flow Coefficient	2.1 Cv
Voltage (V)	24 VDC	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Power (Watts)	10 Watt (DC)	Mechanical Option	Exhaust Adapter Nut
Maximum Pressure Differential (psi)	180 psi (DC)

Product resources

Literature and Reference Materials

73312/73322/73382 Installation, Operation & Maintenance Instructions (PDF)
