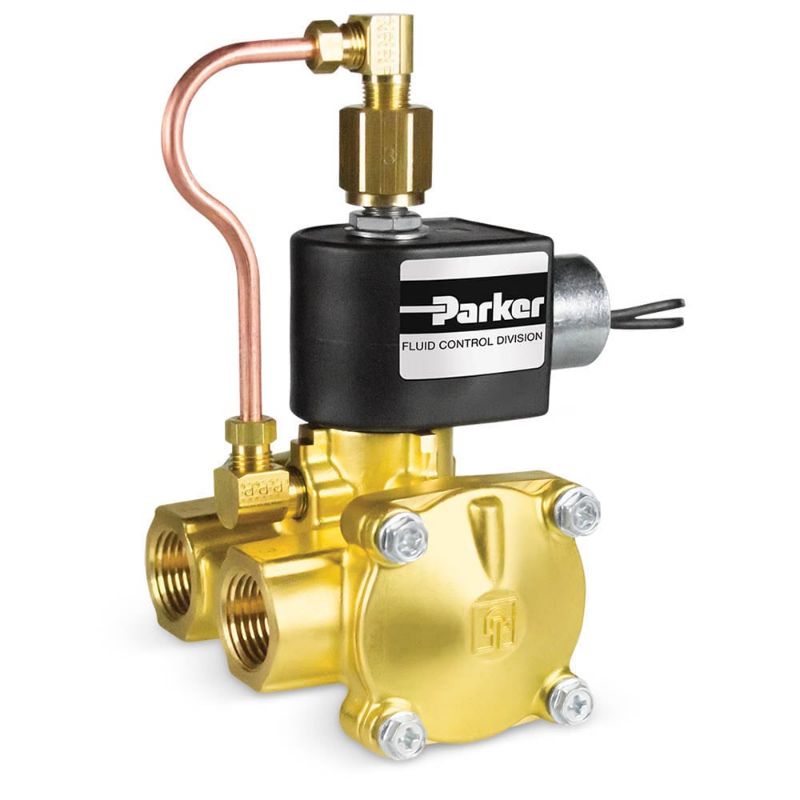

Parker 73312BN3RNJ1N0C111P3 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN3RNJ1N0C111P3

$632.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Liquids and Gases
Number of Ports	3	Port Size	3/8 inch
Coil Specifications Met	NEMA 4X	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Division	Fluid Control Division	Body Material	Brass
Input Voltage	110/50-120/60	Minimum Pressure Differential	10 psi
Main Flow Coefficient	2.1 Cv	Exhaust Flow Coefficient	n/a
Power Consumption	10 W (AC)	Seal Material	NBR
Actuation Type	Mechanical	Port Type	NPT
Maximum Pressure Differential	180 psi (AC)	Maximum Fluid Temperature	185 °F
Main Orifice Size	3/8 inch	Additional Options	Exhaust Adapter Nut
Exhaust Orifice Size	n/a	Function	Normally Closed (NC)
Valve Type	3-Way	Minimum Fluid Temperature	0 °F
Flow Coefficient 2	n/a	Product Series	7000 Series
Orifice 2 Size	n/a	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	10 Watt (AC)
Mechanical Option	Exhaust Adapter Nut	Maximum Pressure Differential (psi)	180 psi (AC)

Product resources

Literature and Reference Materials

73312/73322/73382 Installation, Operation & Maintenance Instructions (PDF)
