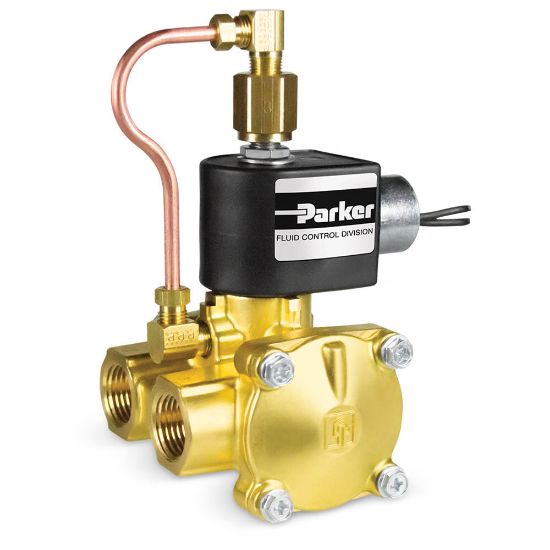

Picture of Parker 73312BN3RNJ0N0H111C2 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 73312BN3RNJ0N0H111C2 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 73312BN3RNJ0N0H111C2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Closed (NC)Valve Type3-Way
Input Voltage24.0 VDCSeal MaterialNBR
Orifice 2 Sizen/aNumber of Ports3
Flow Coefficient 2n/aMinimum Fluid Temperature0 °F
Port Size3/8 inchMaximum Fluid Temperature185 °F
Exhaust Flow Coefficientn/aExhaust Orifice Sizen/a
Actuation TypeManualProduct Series7000 Series
Power Consumption10 W (DC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Coil Specifications MetNEMA 7Maximum Pressure Differential180 psi (DC)
Minimum Pressure Differential10 psiMain Orifice Size3/8 inch
Additional OptionsExhaust Return PipeMain Flow Coefficient2.1 Cv
Voltage (V)24 VDCCoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Power (Watts)10 Watt (DC)Maximum Pressure Differential (psi)180 psi (DC)
Mechanical OptionExhaust Return Pipe
