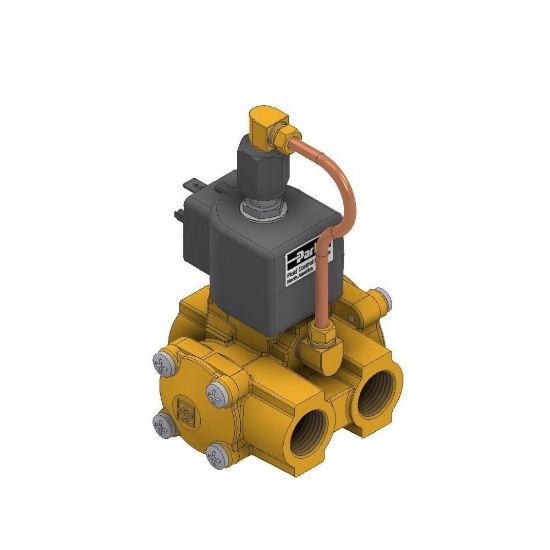

Parker 73312BN3RNJ0N0D100C1 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN3RNJ0N0D100C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Coil Type	DIN Form A, Class F	Valve Type	3-Way
Input Voltage	12.0	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Fluid Temperature	0	Maximum Fluid Temperature	185
Exhaust Flow Coefficient	n/a	Exhaust Orifice Size	n/a
Actuation Type	Manual	Product Series	7000 Series
Power Consumption	10 W (DC)	Maximum Pressure Differential	180 psi (DC)
Minimum Pressure Differential	10	Main Orifice Size	3/8
Additional Options	Exhaust Return Pipe	Main Flow Coefficient	2.1
Coil Type	DIN Form A, Class F	Voltage (V)	12 VDC
Power (Watts)	10 Watt (DC)	Maximum Pressure Differential (psi)	180 psi (DC)
Mechanical Option	Exhaust Return Pipe

Product resources

Literature and Reference Materials

73312/73322/73382 Installation, Operation & Maintenance Instructions (PDF)
