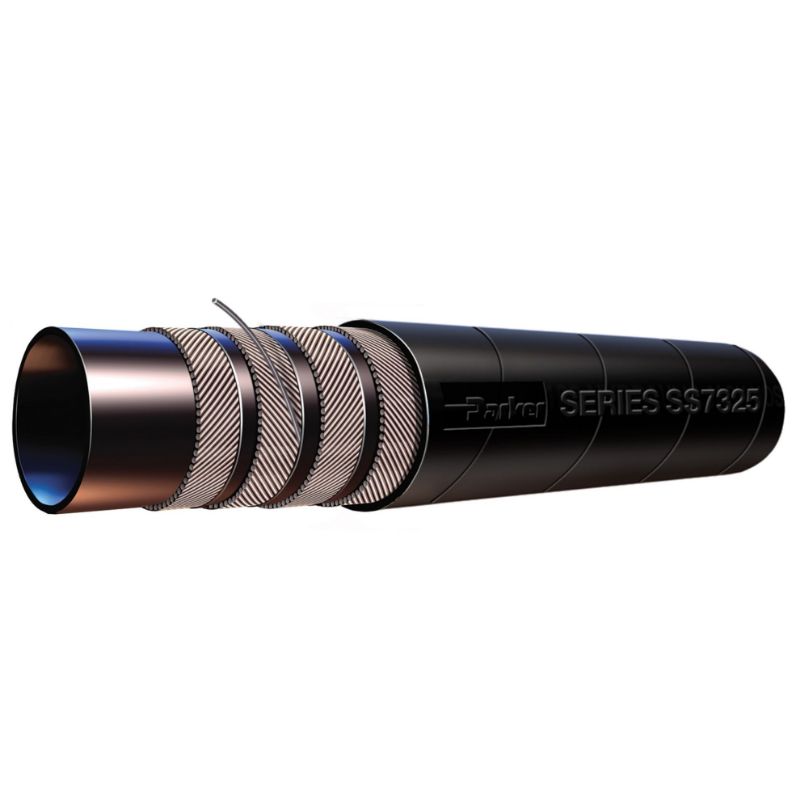

Parker 7325-2000 - SUPER-FLEX® Heavy Duty Water Suction Hose, Series 7325

Super-Flex Heavy Duty Water Suction Hose is designed for water transfer in applications to 212°F and 300 psi, Series 7325.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7325-2000

Products specifications

Attribute name	Attribute value
Design Factor	4:1	Hose Inner Tube Material	Black
Media	Water	Minimum Bend Radius	203 mm
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Specifications Met	n/a
Application	Water	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	300 psi	Outside Diameter	2.7 inch
Weight	2.28 kg/m	Hose Reinforcement Material	4 Plies of Textile with Wire Helix
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Vacuum Pressure Rating	737 mm-Hg	Inside Diameter	50.8 mm
Cover Color	Black	Hose I.D. (inch)	2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
