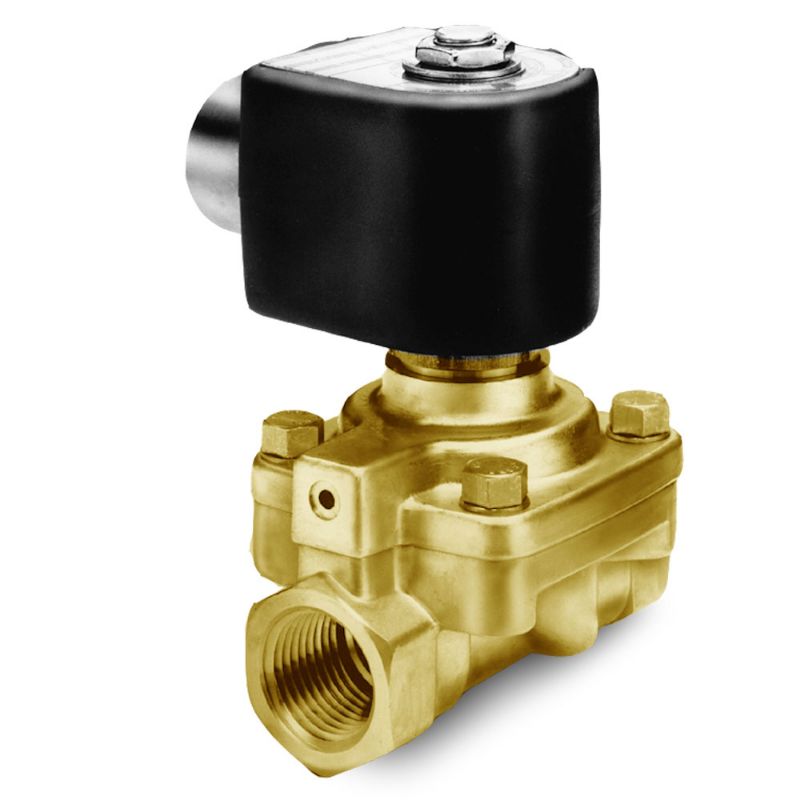

Parker 7322GBN99N00N0C111C1 - Parker 2-Way Normally Open, 2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 2" NPT Solenoid Valves provide operating pressures of 170 PSI and flow factors of 38.6 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7322GBN99N00N0C111C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Open (NO)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	2-Way	Input Voltage	12.0
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	5	Port Size	2
Maximum Fluid Temperature	185	Product Series	7000 Series
Power Consumption	10 W (DC)	Actuation Type	Pilot
Orifice 1 Size	1-9/16	Flow Coefficient 1	38.6
Maximum Pressure Differential	170 psi (DC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	12 VDC	Power (Watts)	10 Watt (DC)
Maximum Pressure Differential (psi)	170 psi (DC)

Product resources

Literature and Reference Materials

Tube Seal (PDF)
