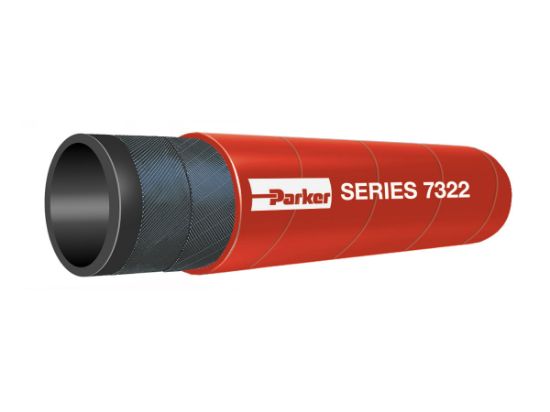

Parker 7322-150200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7322-150200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Media	Water	Specifications Met	N/A
Maximum Operating Temperature	100 °C	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	1-1/2 inch	Hose Reinforcement Material	2 Plies of Textile
Size	-24	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Application	Multipurpose	Maximum Operating Pressure	13.8 bar
Nominal Hose Inside Diameter	40 mm	Weight	0.82 lb/ft
Outside Diameter	50.4 mm	Minimum Bend Radius	8.5 inch
Color	Red	Hose I.D. (inch)	1-1/2
UOM	FT	Pkg Qty/UOM	200 FT
Mating Fitting Series	43	Package Type	Coil
Inner Diameter	1.5 Inch	Pkg Qty	200
Color	Red	Working Pressure	200 PSI (14 bar)
Inch/Metric	Inch	Hose Category	General Service Air & Water
Series	7322	Inner Diameter	1.5 Inch
Parker Division	Hose Products	Mating End Fitting Series	43
Parker Group	Fluid Connector	Hose Pressure Range	Low
Inner Diameter Inch/mm	Inch	Color	Red
Trade Name	SUPER-LOK GS™

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
