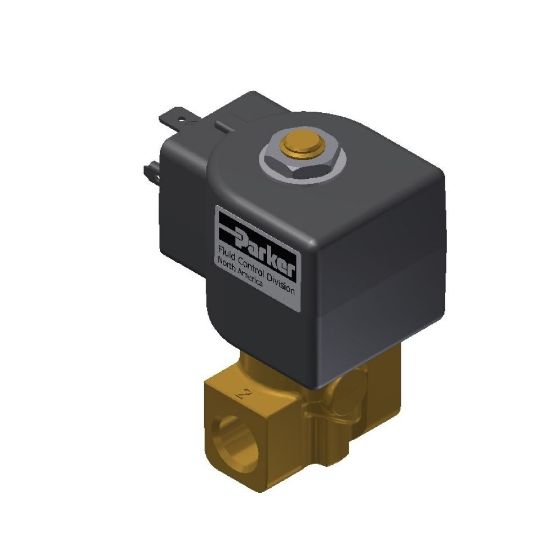

Parker 7321KBN2RN00N0D300C1 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7321KBN2RN00N0D300C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	12.0
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	3	Maximum Pressure Differential	150 psi (DC)
Maximum Fluid Temperature	185	Coil Type	DIN Form A
Product Series	7000 Series	Power Consumption	22 W (DC)
Orifice 1 Size	7/16	Actuation Type	Pilot
Flow Coefficient 1	2	Body Material	BRASS
Voltage (V)	12 VDC	Seal Material	NBR
Coil Type	DIN Form A	Power (Watts)	22 Watts (DC)
Orifice 1 Size (inch)	7/16	Flow Factor 1 (Cv)	2
