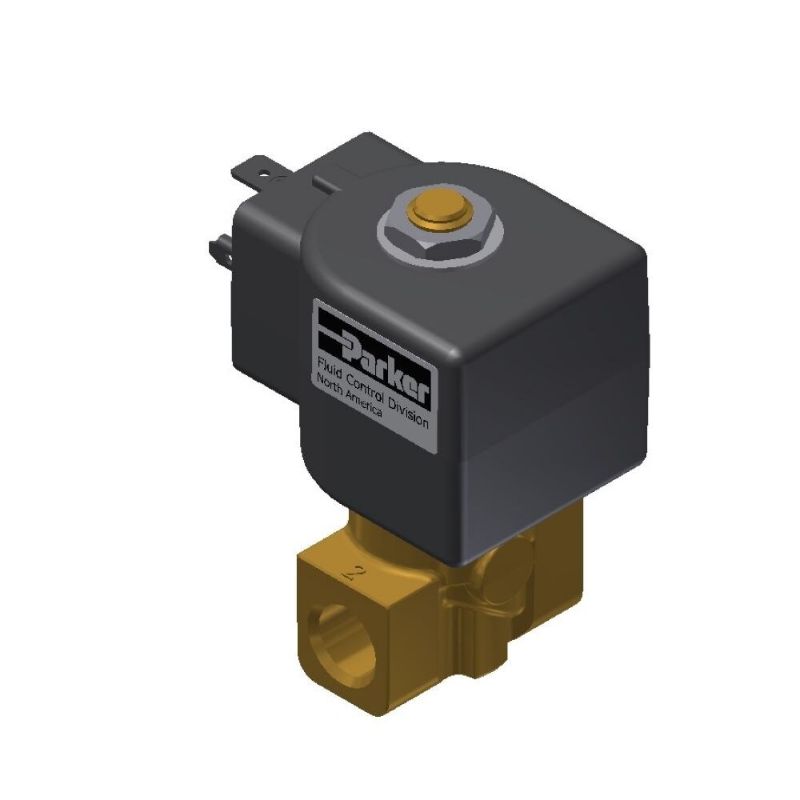

Parker 7321HBN2SN00N0D100C2 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7321HBN2SN00N0D100C2

$500.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Ports	2
Media	General Purpose for Air	Coil Specifications Met	NEMA 4X
Coil Type	DIN Form A	Division	Fluid Control Division
Orifice 1 Size	5/16 inch	Minimum Pressure Differential	5 psi
Body Material	Brass	Input Voltage	24.0 VDC
Port Size	1/4 inch	Maximum Pressure Differential	435 psi (DC)
Power Consumption	10 W (DC)	Seal Material	NBR
Actuation Type	Pilot	Maximum Fluid Temperature	185 °F
Port Type	NPT	Flow Coefficient 1	2.5 Cv
Flow Coefficient 2	n/a	Function	Normally Closed (NC)
Minimum Fluid Temperature	0 °F	Valve Type	2-Way
Product Series	7000 Series	Orifice 2 Size	n/a
Body Material	BRASS	Voltage (V)	24 VDC
Seal Material	NBR	Orifice 1 Size (inch)	5/16
Coil Type	DIN Form A	Power (Watts)	10 Watts (DC)
Flow Factor 1 (Cv)	2.5
