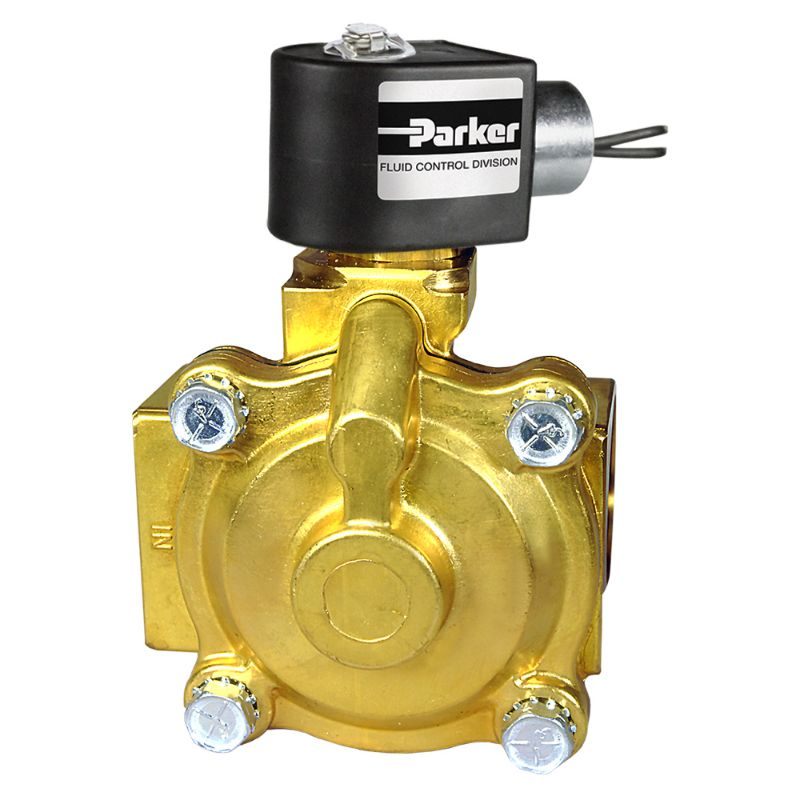

Picture of Parker 73218BN75N00N0C222Q3 - Parker 2-Way Normally Closed, 1-1/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 73218BN75N00N0C222Q3 - Parker 2-Way Normally Closed, 1-1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/4" NPT Solenoid Valves provide pressures up to 150 PSI and flow factors of 15 CV's. They have brass bodies, multiple mounting positions and Class F or H and NEMA 4X, 7 or 9 coils for general purpose flow applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 73218BN75N00N0C222Q3
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size1-1/4Port TypeNPT
Body MaterialBrassDivisionFluid Control Division
MediaGeneral Purpose for AirFunctionNormally Closed (NC)
Valve Type2-WayInput Voltage220/50 to 240/60
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0
Minimum Pressure Differential5Maximum Pressure Differential125
Power Consumption10Maximum Fluid Temperature185
Orifice 1 Size1-1/8Flow Coefficient 115
Product Series7000 SeriesCoil Type1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
Actuation TypePilotVoltage (V)220/50-240/60
Maximum Pressure Differential (psi)125 psi (AC)Power (Watts)10 Watt (AC)
Coil Type1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
