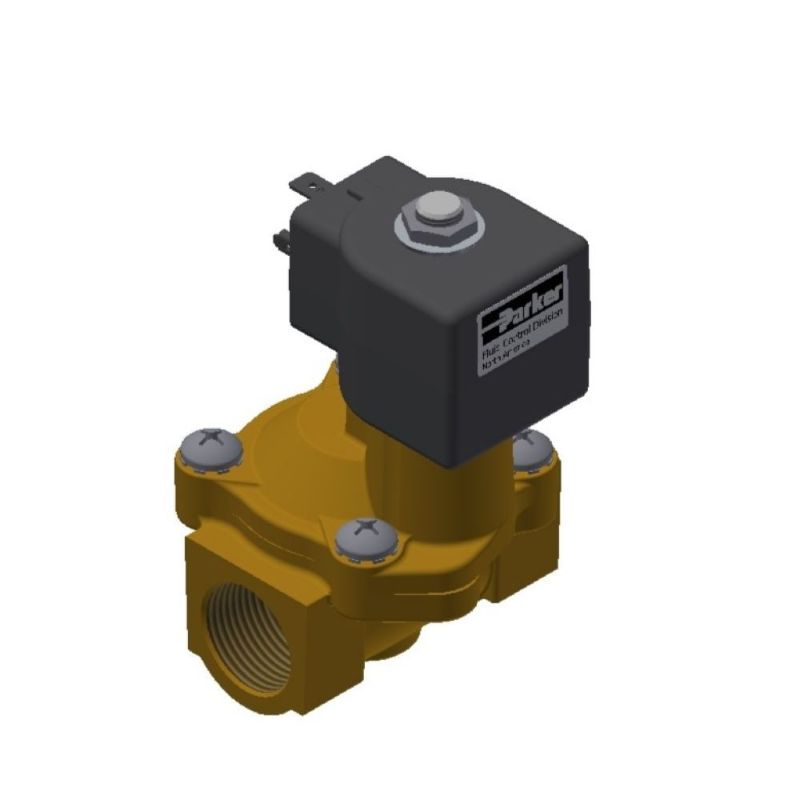

Parker 73218BN4UTS0N0D200P3 - High Pressure Steam Valves

Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73218BN4UTS0N0D200P3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Port Size	1/2 inch	Division	Fluid Control Division
Function	Normally Closed (NC)	Valve Type	2-Way
Minimum Pressure Differential	3 psi	Coil Type	DIN 43650A / ISO 4400
Orifice Size	5/8 inch	Media	Hot Water
Seal Material	PTFE	Actuation Type	Internal Pilot
Specifications Met	UL	Ingress Protection Rating	NEMA 4
Maximum Fluid Temperature	353 °F	Maximum Pressure Differential	- psi
Maximum Steam Pressure	125 psi	Main Flow Coefficient	4.0 Cv
Input Voltage	120/60 VAC	Insulation Class	H (180°C)
Power Consumption	10 W	Installation	IOM 7217
Preventive Maintenance Kit	7K823	Maximum Ambient Temperature	77 °F
Port Type	NPT	Body Material	BRASS
Coil Type	DIN 43650A / ISO 4400	Function	Normally Closed
Orifice Size	5/8	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Insulation Class	Class H
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Ingress Protection Rating	NEMA 4,4X
Media	Water, Hot Water, Steam	Seal Material	PTFE
Maximum Fluid Temperature	353	Maximum Pressure Differential	-
Valve Type	2 Way	Maximum Steam Pressure	125
Port Size	1/2	Main Flow Coefficient	4.0
Installation	IOM 7217	Power Consumption	10
Preventive Maintenance Kit	7K823	Maximum Ambient Temperature	77
Minimum Pressure Differential	3

Product resources

Literature and Reference Materials

Tube Seal (PDF)
