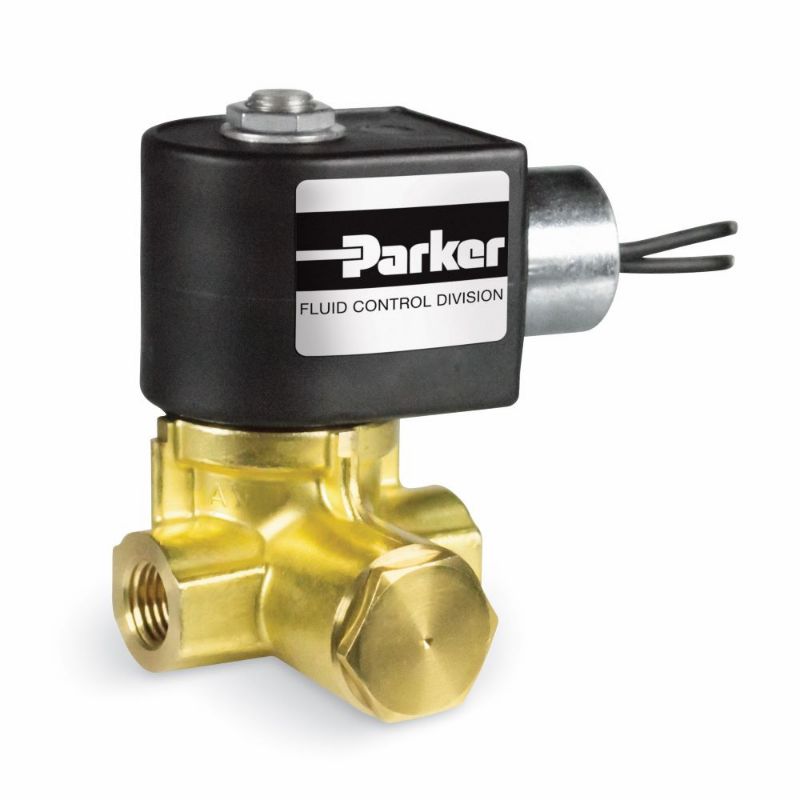

Parker 73212BN2MN00N0C111C2 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73212BN2MN00N0C111C2

$172.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Pressure Differential	300 psi (DC)
Actuation Type	Pilot	Power Consumption	10 W (DC)
Seal Material	NBR	Maximum Fluid Temperature	185 °F
Flow Coefficient 1	0.76 Cv	Port Type	NPT
Valve Type	2-Way	Minimum Fluid Temperature	0 °F
Flow Coefficient 2	n/a	Function	Normally Closed (NC)
Orifice 2 Size	n/a	Product Series	7000 Series
Coil Type	1/2" Conduit, 18" Leads	Coil Specifications Met	NEMA 4X
Media	Liquids and Gases	Number of Ports	2
Division	Fluid Control Division	Orifice 1 Size	1/8 inch
Minimum Pressure Differential	5 psi	Port Size	1/4 inch
Body Material	Brass	Input Voltage	24.0 VDC
Voltage (V)	24 VDC	Power (Watts)	10 Watts (DC)
Flow Factor 1 (Cv)	0.76	Body Material	BRASS
Coil Type	1/2" Conduit, 18" Leads	Orifice 1 Size (inch)	1/8
Seal Material	NBR

Product resources

Literature and Reference Materials

73212/73222 (1/4\) Installation, Operation & Maintenance Instructions (PDF) $73212/73222 (1/4\) Installation, Operation & Maintenance Instructions$
