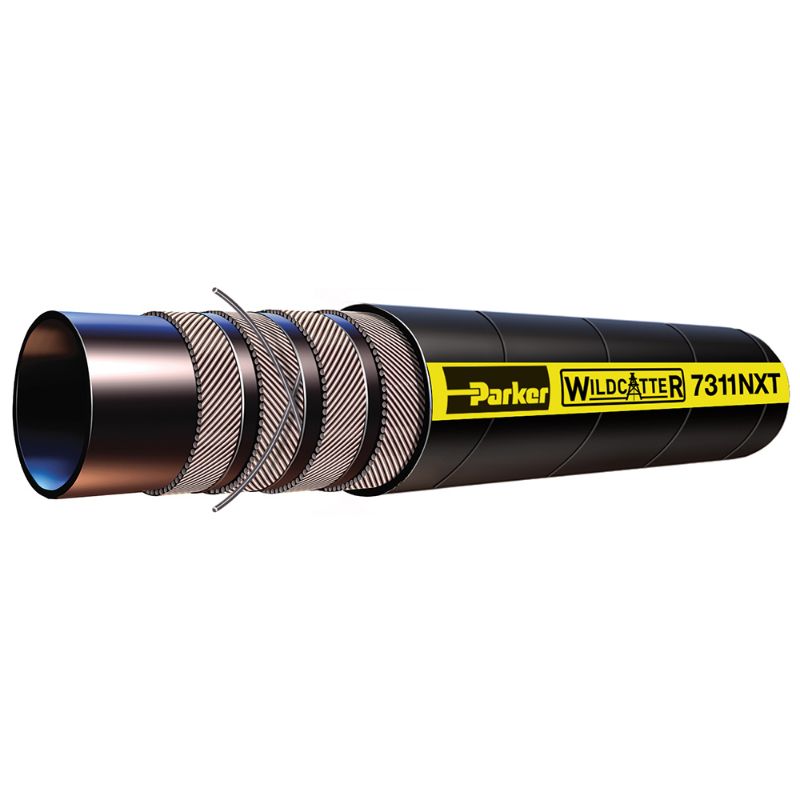

Parker 7311NXT-4000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7311NXT-4000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200 °F	Specifications Met	N/A
Length per Package	100 ft	Media	Fuels - Check fuel type with our catalogue chart.
Application	Oilfield	Design Factor	4:1
Outside Diameter	122.7 mm	Vacuum Pressure Rating	n/a
Minimum Operating Temperature	-40 °C	Cover Material	Nitrile Blend
Hose Inner Tube Material	Black	Inside Diameter	101.6 mm
Minimum Bend Radius	n/a	Weight	1.26 kg/ft
Division	Hose Products Division	Cover Color	Black
Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires	Maximum Operating Pressure	400 psi
Package Type	Coil	Hose Cover Material	Nitrile blend/UHMPE; wrapped finish
Hose I.D. (inch)	4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
