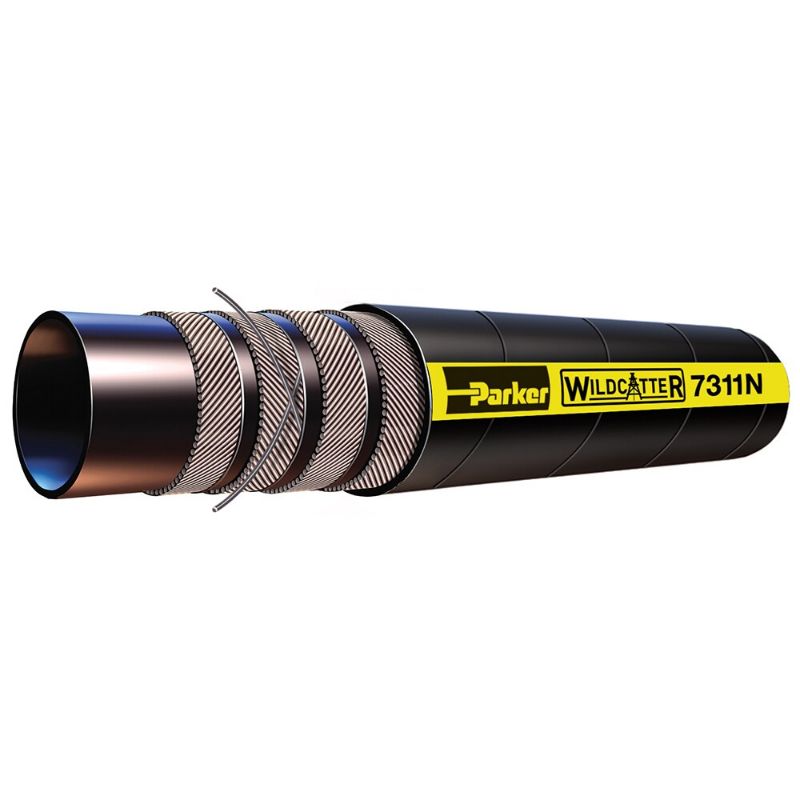

Parker 7311N-1500 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7311N-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cover Material	Nitrile Blend	Minimum Bend Radius	n/a
Inside Diameter	38.1 mm	Hose Inner Tube Material	Nitrile
Minimum Operating Temperature	-40 °F	Outside Diameter	2 inch
Package Type	Coil	Media	Wet Abrasive Powders (Slurry)
Division	Hose Products Division	Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires
Cover Color	Black	Maximum Operating Pressure	400 psi
Weight	0.344 kg/ft	Maximum Operating Temperature	200 °F
Length per Package	100 ft	Application	Oilfield
Design Factor	4:1	Vacuum Pressure Rating	n/a
Specifications Met	N/A	Hose Cover Material	Nitrile blend; wrapped finish
Hose I.D. (inch)	1 1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
