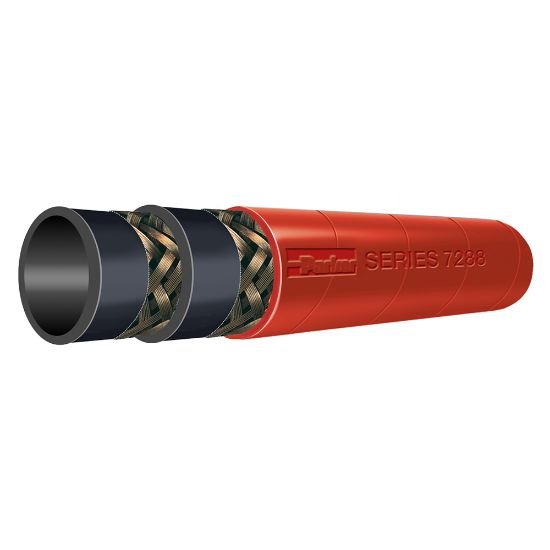

Parker 7288-1002A - DRAGON BREATH® 250 Oil Resistant Steam Hose, Series 7288

Dragon Breath® 250 Oil Resistant Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7288

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7288-1002A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cover Material	Chloroprene Rubber (CR)	Maximum Operating Temperature	207 °C (Saturated Steam)
Maximum Operating Pressure	17.2 bar (Superheated Steam)	Inside Diameter	1
Media	Steam (Saturated)	Application	Steam
Division	Hose Products Division	Weight	0.9
Cover Structure	Perforated	Cover Color	Red
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Hose Reinforcement Material	2 Braids of Wire
Outside Diameter	1.594	Package Type	Reel
Minimum Operating Temperature	-20	Specifications Met	ARPM Class B Cover
Minimum Bend Radius	12	Standard Pack Qty (ft)	500
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
