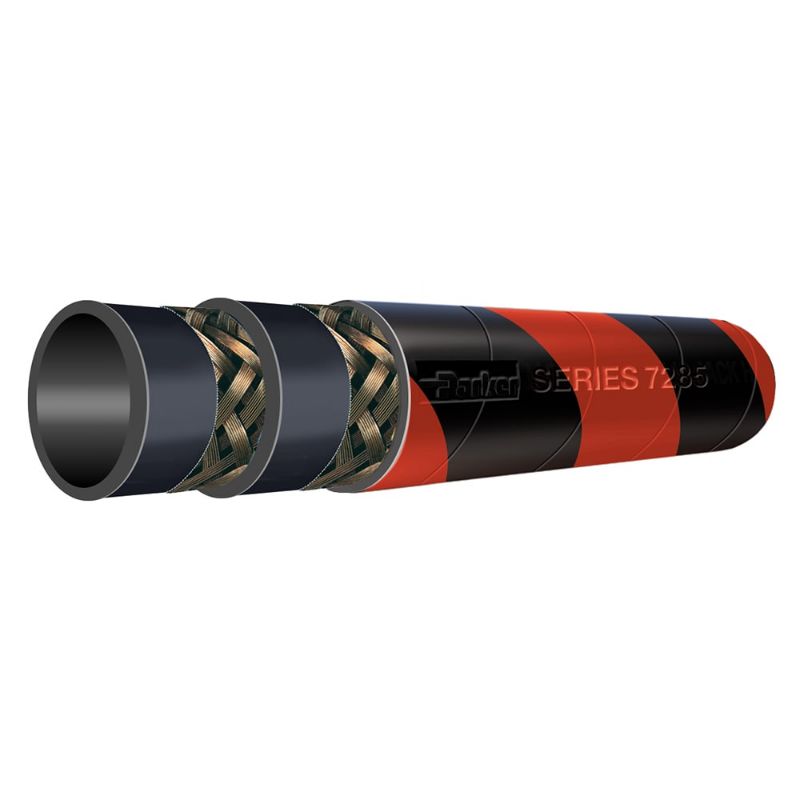

Parker 7285-1002 - DRAGON BREATH® II Barber Pole Steam Hose, Series 7285

Dragon Breath® II Barber Pole Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7285

Availability:	Quote Required
Partner Available:	55 In Stock

Brand Parker

Part No. 7285-1002

$19.40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inner Tube Material	Chlorobutyl
Application	Industrial	Maximum Operating Temperature	450 °F (Superheated Steam)
Outside Diameter	39.3 mm	Weight	1.21 kg/m
Hose Reinforcement Material	Multiple Braids of Wire	Cover Color	Black & Red
Specifications Met	ISO 6134, Type 2	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	12 inch	Minimum Operating Temperature	-40 °F
Division	Hose Products Division	Media	Steam
Inside Diameter	25.4 mm	Maximum Operating Pressure	18 bar
Hose I.D. (inch)	1

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
