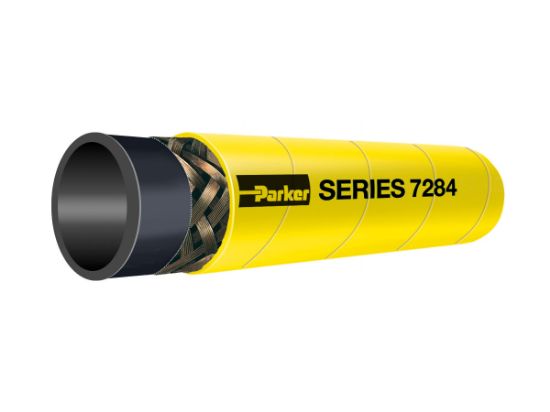

Parker 7284-381 - YELLOW BIRD® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7284

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7284-381

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Water
Inside Diameter	3/8 inch	Maximum Operating Pressure	1500 psi
Maximum Operating Temperature	212 °F	Cover Color	Yellow
Package Type	Reel	Compatible Fitting	HY Series
Minimum Bend Radius	152.4 mm	Specifications Met	MSHA
Outside Diameter	0.700 inch	Minimum Operating Temperature	-20 °F
Weight	0.23 lb	Application	Multipurpose
Cover Material	Nitrile/PVC	Cover Structure	Perforated
Hose Reinforcement Material	1 Braid of Wire	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)
Hose I.D. (inch)	3/8	Standard Pack Qty (ft)	500
Maximum Working Pressure (psi)	1500	Inner Diameter	0.375 Inch
Color	Yellow	UOM	FT
Package Type	Reel	Pkg Qty/UOM	500 FT
Working Pressure	1500 PSI (100 bar)	Pkg Qty	500
Inner Diameter Inch/mm	Inch	Series	7284
Trade Name	YELLOW BIRD®	Color	Yellow
Inch/Metric	Inch	Inner Diameter	0.375 Inch
Parker Division	Hose Products	Hose Pressure Range	High
Parker Group	Fluid Connector	Hose Category	High Pressure Wire Braid Mine and Multipurpose

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
