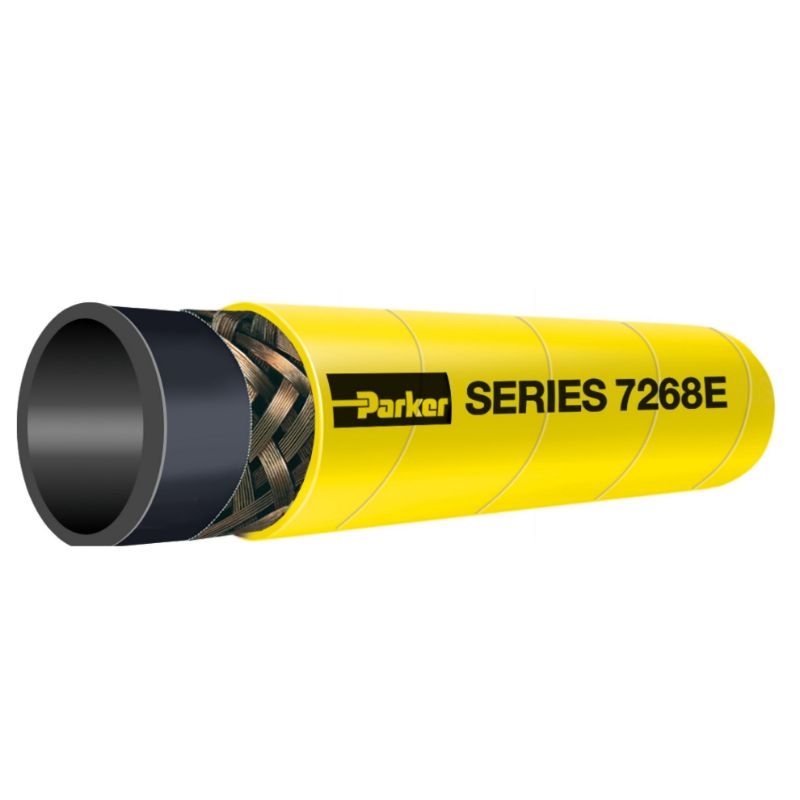

Parker 7268E-1001100 - STINGER™ II High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7268E

Stinger II High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in applications to 212°F and 1000 psi, Series 7268E

AFP Availability:	Quote Required
Partner Available:	50 In Stock

Brand Parker

Part No. 7268E-1001100

$13.40/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	1.339 inch
Inside Diameter	1 inch	Weight	0.75 kg/m
Maximum Operating Pressure	69 bar	Maximum Operating Temperature	100 °C
Cover Color	Yellow	Division	Hose Products Division
Hose Inner Tube Material	Black	Media	Water
Minimum Bend Radius	203 mm	Specifications Met	MSHA
Hose Reinforcement Material	1 Braid of Wire	Cover Material	Nitrile/PVC
Application	Water	Minimum Operating Temperature	-29 °C
Hose I.D. (inch)	1	Standard Package Quantity	100 ft
