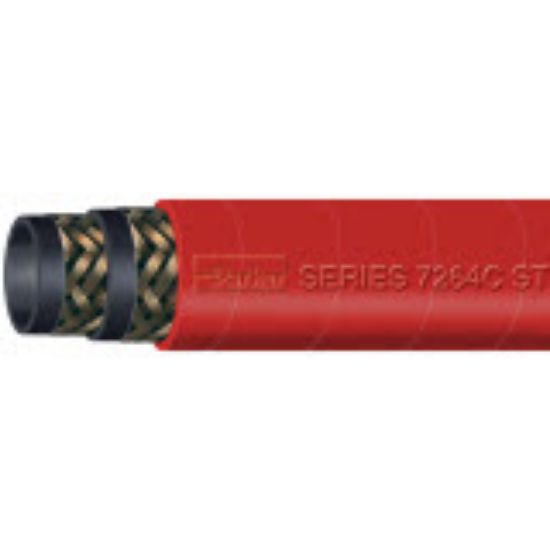

Parker 7264C-752 - STEAM-LANCE® 250 COMPACT STEAM HOSE

Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7264C-752

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Media	Steam	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Application	Processing	Size	-12
Inside Diameter	3/4 inch	Hose Inner Tube Material	Black
Minimum Bend Radius	9 inch	Nominal Hose Inside Diameter	20 mm
Cover Structure	Perforated	Specifications Met	ISO 6134, Type 2
Maximum Operating Pressure	250 bar (Superheated Steam)	Hose Reinforcement Material	Multiple Braids of Wire
Maximum Operating Temperature	208 °C (Saturated Steam)	Weight	0.7 kg/m
Outside Diameter	1.2 inch	Color	Red
Hose I.D. (inch)	3/4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
