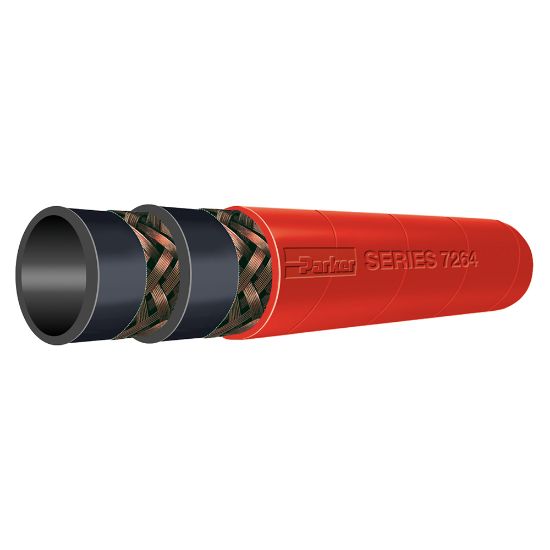

Parker 7264-752A - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7264-752A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Media	Steam	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Application	Processing	Size	-12
Inside Diameter	19.1 mm	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Nominal Hose Inside Diameter	20 mm	Cover Structure	Perforated
Weight	0.98 kg/m	Specifications Met	ISO 6134, Type 2
Minimum Bend Radius	241 mm	Maximum Operating Pressure	17 bar (Superheated Steam)
Hose Reinforcement Material	Multiple Braids of Wire	Maximum Operating Temperature	208 °C (Saturated Steam)
Outside Diameter	34.1 mm	Color	Red
Hose I.D. (inch)	3/4	Packaging	Reel

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
