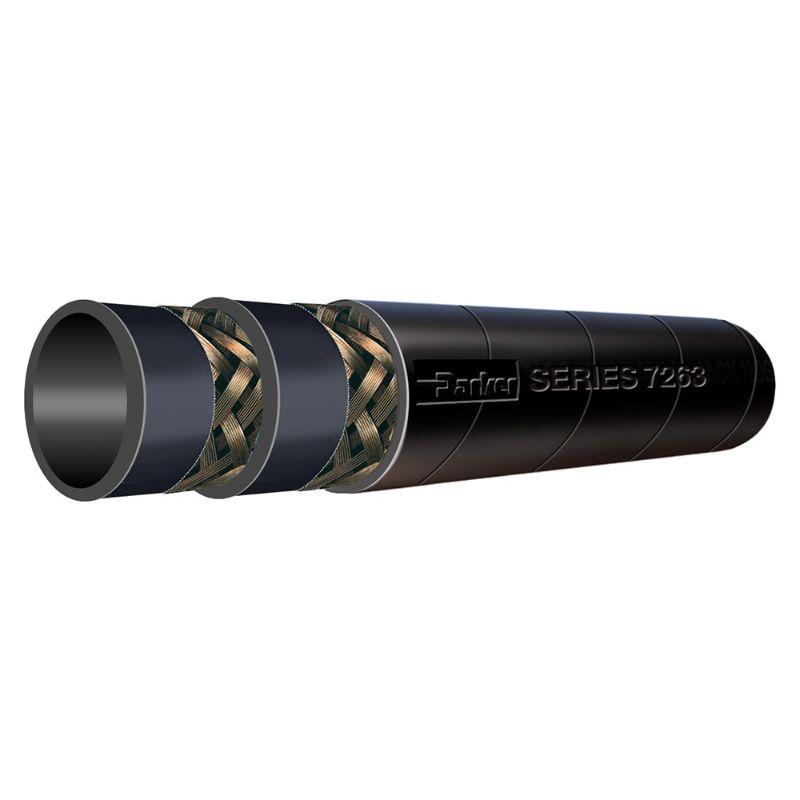

Parker 7263-752 - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

AFP Availability:	Quote Required
Partner Available:	1326 In Stock

Brand Parker

Part No. 7263-752

$11.29/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/4 inch
Cover Structure	Perforated	Outside Diameter	1.340 inch
Weight	0.98 kg/m	Maximum Operating Pressure	250 bar (Superheated Steam)
Size	-12	Maximum Operating Temperature	450 °F (Superheated Steam)
Division	Hose Products Division	Hose Inner Tube Material	Black
Media	Steam	Specifications Met	ISO 6134, Type 2
Hose Reinforcement Material	Multiple Braids of Wire	Minimum Bend Radius	10 inch
Minimum Operating Temperature	-40 °F	Application	Refineries
Nominal Hose Inside Diameter	20 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Color	Black	Hose I.D. (inch)	3/4
Packaging	Carton

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
