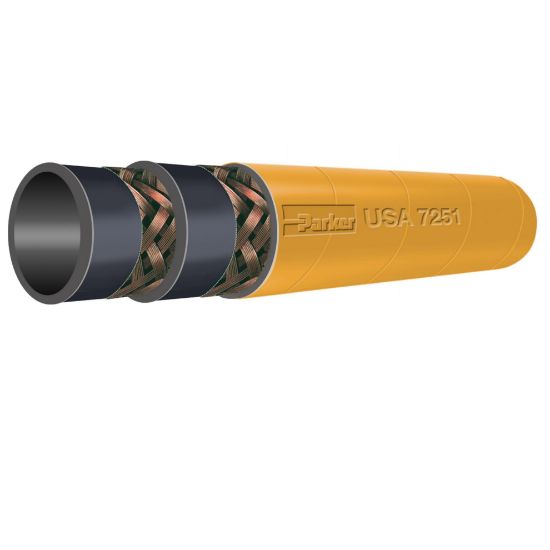

Parker 7251-2502K - THORO-BRAID® Medium Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7251

Thoro-Braid Medium Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in heavy duty applications to 212°F and 600 psi, Series 7251

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7251-2502K

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Water
Maximum Operating Temperature	212 °F	Maximum Operating Pressure	500 psi
Cover Color	Yellow	Compatible Fitting	n/a
Inside Diameter	2-1/2 inch	Specifications Met	MSHA
Minimum Operating Temperature	-20 °F	Package Type	Carton
Application	Multipurpose	Cover Material	Nitrile/PVC
Hose Inner Tube Material	Chloroprene	Cover Structure	Perforated
Weight	2.3 lb	Outside Diameter	3.156 inch
Minimum Bend Radius	812.8 mm	Hose Reinforcement Material	2 Braids of Wire
Length per Package	150 ft	Hose I.D. (inch)	2-1/2
Maximum Working Pressure (psi)	500

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
