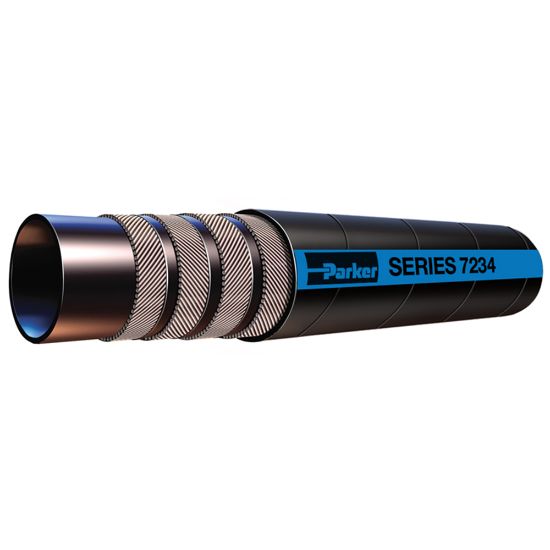

Parker 7234-2002 - WILDCATTER® Oilfield Slim Hole Rotary Drill Hose, Series 7234

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7234-2002

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	3000 psi	Media	Water
Specifications Met	N/A	Package Type	Coil
Length per Package	100 ft	Application	Oilfield
Cover Color	Black	Maximum Operating Temperature	200 °F
Inside Diameter	2 inch	Hose Inner Tube Material	Black
Cover Structure	Wrapped	Cover Material	Nitrile
Weight	1.25 kg	Outside Diameter	2.593 inch
Compatible Fitting	WC Series	Minimum Bend Radius	317.5 mm
Hose Reinforcement Material	2 Braids of Wire	Tube Material	Nitrile
Hose I.D. (inch)	2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
