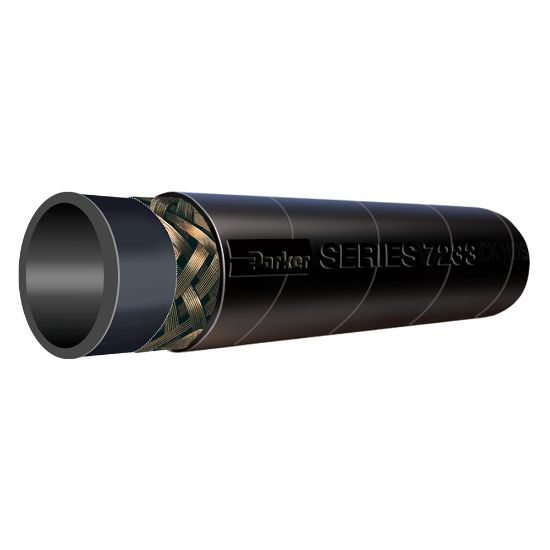

Parker 7233-311 - Liquid Petroleum Gas LPG Hose, Series 7233

Liquid Petroleum Gas LPG Hose is designed for propane fuel line service on forklift and utility vehicle applications in applications to 140°F and 350 psi, Series 7233

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7233-311

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Length per Package	500 ft	Minimum Bend Radius	4 inch
Cover Color	Black	Inside Diameter	7.9 mm
Package Type	Reel	Cover Material	Chloroprene Rubber (CR)
Compatible Fitting	HY Series	Hose Inner Tube Material	Nitrile
Maximum Operating Temperature	82 °C	Maximum Operating Pressure	24.1 bar
Application	Petroleum	Cover Structure	Perforated
Media	LPG	Specifications Met	UL 21.0
Weight	0.19 lb	Outside Diameter	0.675 inch
Hose Reinforcement Material	1 Braid of Stainless Steel Wire	Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
