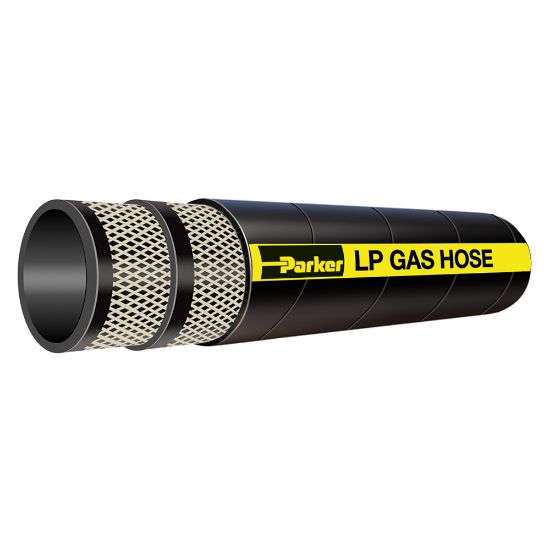

Parker 7232-2003K - Liquid Petroleum Gas LPG Hose, Series 7232

Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series 7232

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7232-2003K

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Cover Color	Black	Maximum Operating Temperature	180 °F
Inside Diameter	2 inch	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Maximum Operating Pressure	24.1 bar
Package Type	Carton	Compatible Fitting	7661 Series
Application	Petroleum	Cover Structure	Perforated
Media	Propane	Specifications Met	CSA 8.1, Type I
Minimum Bend Radius	16 inch	Weight	1.90 lb/ft
Outside Diameter	2.750 inch	Hose Reinforcement Material	3 Braids of Textile
Hose I.D. (inch)	2	Maximum Working Pressure (psi)	350
Standard Pack Qty (ft)	150

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
