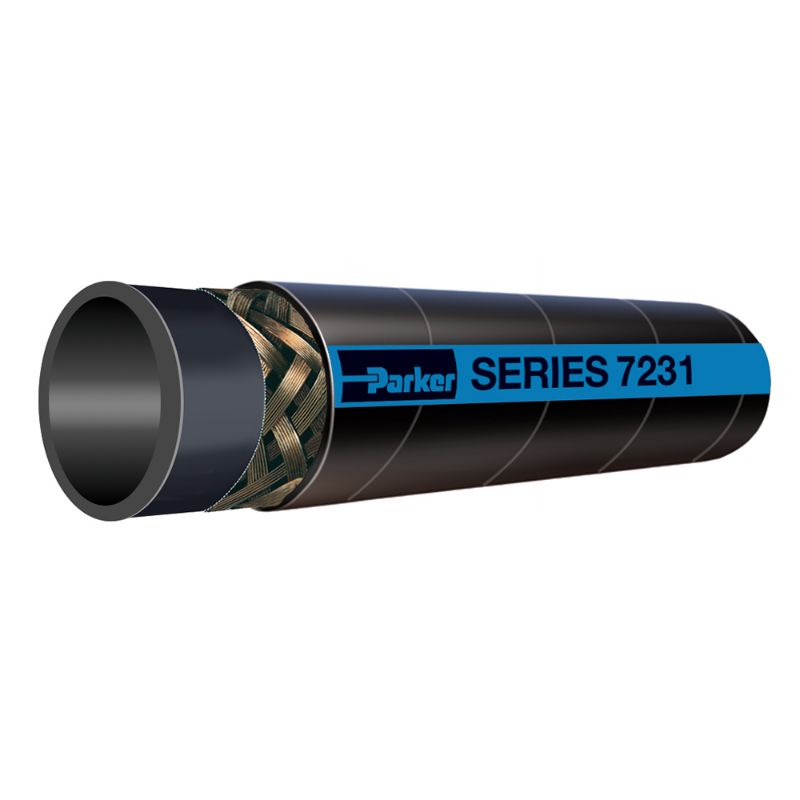

Parker 7231-2002K - Liquid Petroleum Gas LPG Hose, Series 7231

Parker's Series 7231 LPG Hose provides superior service for LPG/propane supply and transfer applications. This hose provides a durable vibration dampening connector between metal piping on vehicles and bulk loading performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7231-2002K

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Cover Color	Black	Compatible Fitting	43 Series
Inside Diameter	50.8 mm	Cover Material	Chloroprene Rubber (CR)
Hose Inner Tube Material	Nitrile	Maximum Operating Temperature	82 °C
Maximum Operating Pressure	24.1 bar	Package Type	Carton
Application	Petroleum	Cover Structure	Perforated
Media	LPG	Specifications Met	CSA 8.1, Type I
Weight	1.87 lb/ft	Outside Diameter	66.7 mm
Minimum Bend Radius	635 mm	Hose Reinforcement Material	2 Braids of Stainless Steel Wire
Length per Package	150 ft	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	350

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
