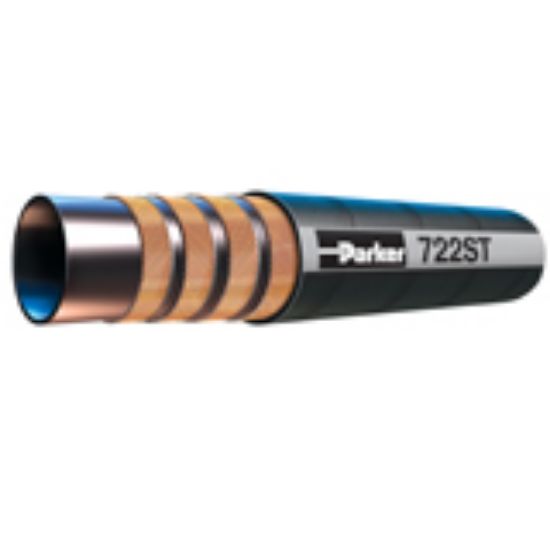

Parker 722ST-20 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 722ST-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	3000 psi	Cover Material	Synthetic Rubber
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	31 mm	Maximum Operating Temperature	257 °F
Application	Petroleum Base Hydraulic Fluids	Media	Lubricants
Weight	2.59 kg/m	Minimum Bend Radius	8-1/4 inch
Specifications Met	USCG HF	Hose Reinforcement Material	4 Spirals of Steel Wire
Inside Diameter	31.4 mm	Outside Diameter	1.840 inch
Hose I.D. (size)	-20	Hose Cover Type	SuperTough

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
