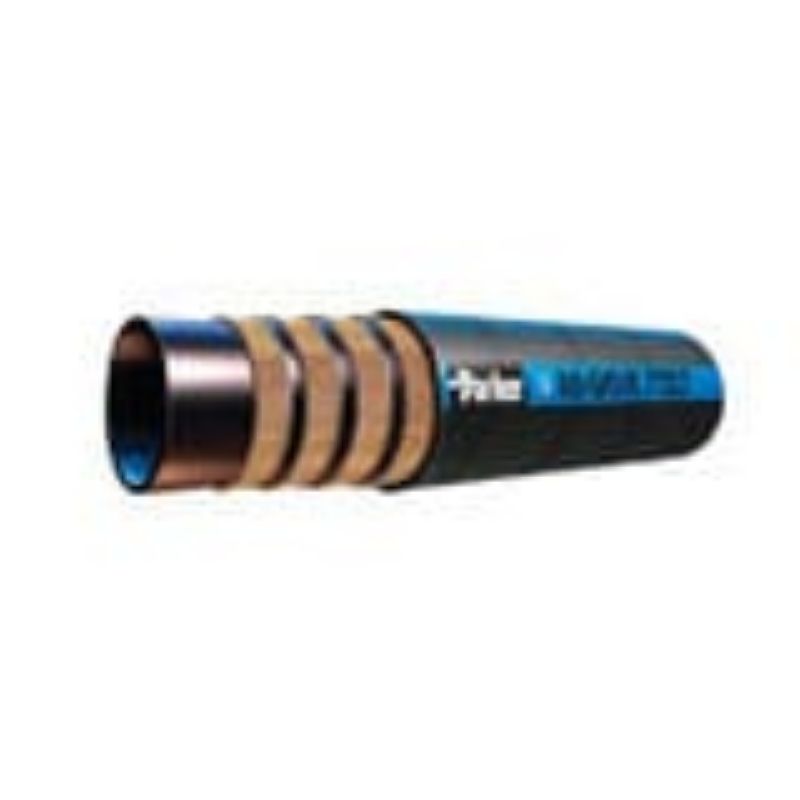

Parker 722LT-20 - Hydraulic Low-Temperature Spiral Hose 2500-4000 PSI - 722LT Hose

Parker’s 722LT hose is a hydraulic low-temperature spiral hose with a pressure range of 2500-4000 PSI in different sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 722LT-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	212 °F
Inside Diameter	1-1/4 inch	Cover Material	Synthetic Rubber
Compatible Fitting	43 Series	Nominal Hose Inside Diameter	31 mm
Maximum Operating Pressure	21 MPa	Media	Lubricants
Weight	2.59 kg/m	Outside Diameter	1.820 inch
Minimum Bend Radius	8-1/4 inch	Minimum Operating Temperature	-57 °C
Hose Reinforcement Material	4 Spirals of Steel Wire	Specifications Met	EN 856, Type R12
Hose Inner Tube Material	Nitrile Synthetic Rubber	Application	Snow Grooming Equipment
Hose I.D. (size)	-20

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

722LT Hose - Low-temperature spiral hose for extreme cold conditions- 4480-B162 (PDF)
