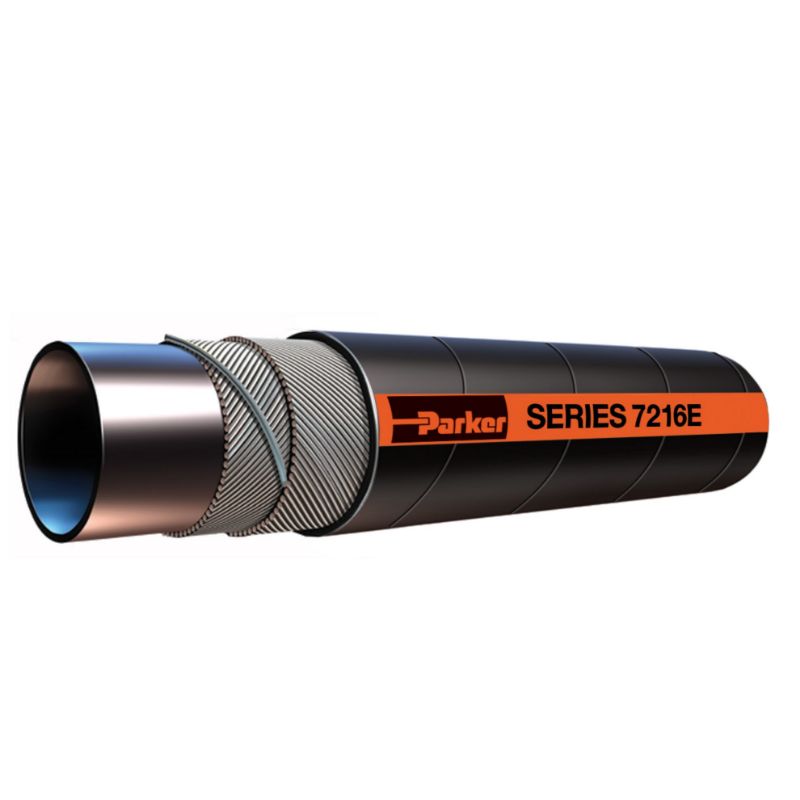

Parker 7216E-1252 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Name: Parker 7216E-1252 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E
SKU: 7216E-1252
Price: 13.04 USD
Availability: InStock

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E

AFP Availability:

188 In Stock

Johnson City, TN

188 (Pickup only)

Partner Available:

6145 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 7216E-1252

$13.04/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-37 °C
Hose Inner Tube Material	Black	Package Type	Coil
Design Factor	n/a	Compatible Fitting	43 Series
Weight	0.97 kg/m	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Length per Package	100 ft	Cover Material	Synthetic Rubber
Specifications Met	n/a	Minimum Bend Radius	102 mm
Application	Petroleum Transfer	Inside Diameter	1-1/4 inch
Vacuum Pressure Rating	Full	Outside Diameter	42.4 mm
Cover Structure	Wrapped	Maximum Operating Pressure	10.3 bar
Media	Fuels (Biodiesel to B20 in dedicated service)	Maximum Operating Temperature	82 °C
Cover Color	Black	Division	Hose Products Division
Hose I.D. (inch)	1-1/4	Maximum Working Pressure (psi)	150

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
