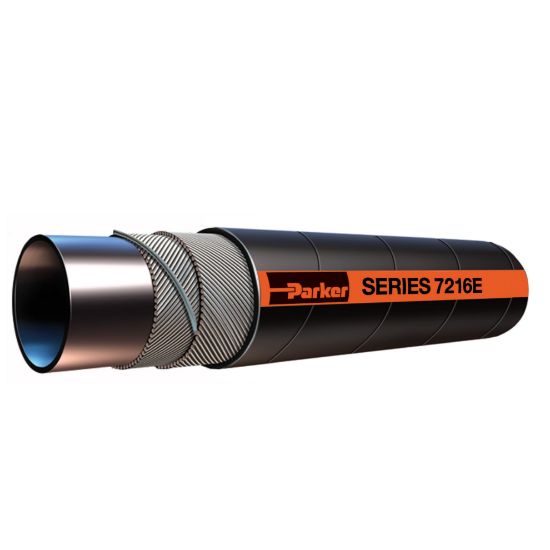

Parker 7216E-1002 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E

Availability:	Quote Required
Partner Available:	5534 In Stock

Brand Parker

Part No. 7216E-1002

$11.28

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Bend Radius	3 inch	Specifications Met	N/A
Design Factor	n/a	Package Type	Coil
Length per Package	100 ft	Maximum Operating Pressure	150 psi
Cover Color	Black	Minimum Operating Temperature	-35 °F
Maximum Operating Temperature	180 °F	Inside Diameter	25.4 mm
Hose Inner Tube Material	Black	Cover Material	Synthetic Rubber
Compatible Fitting	43 Series	Outside Diameter	33 mm
Media	Fuels (Biodiesel to B20 in dedicated service)	Application	Petroleum Transfer
Cover Structure	Wrapped	Vacuum Pressure Rating	Full
Weight	0.47 lb/ft	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	150

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
