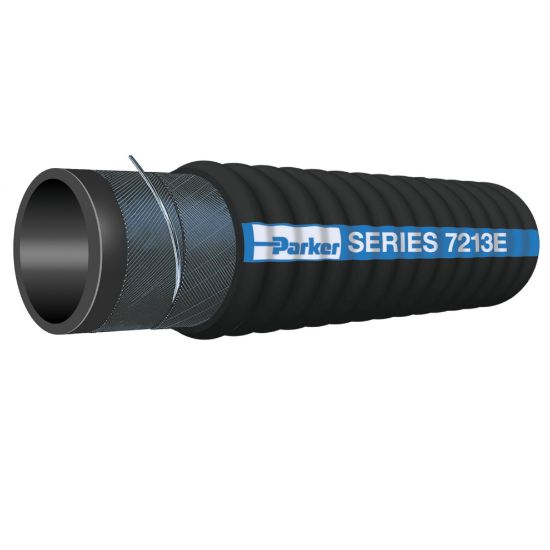

Parker 7213E-2500 - WILDCATTER® Corrugated Bottom Sediment & Waste Oilfield Suction/Vacuum Hose, Series 7213E

Wildcatter Corrugated Bottom Sediment & Waste Oilfield Suction/Vacuum Hose is designed to transfer petroleum waste, sediments, sludge, slurries and water in harsh oilfield waste pit recovery applications to 185°F and 150 psi, Series 7213E

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7213E-2500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	N/A
Package Type	Coil	Length per Package	100 ft
Maximum Operating Temperature	185 °F	Maximum Operating Pressure	10 bar
Application	Oilfield	Cover Color	Black
Hose Inner Tube Material	Black	Inside Diameter	63.5 mm
Outside Diameter	75 mm	Minimum Operating Temperature	-22 °F
Cover Structure	Wrapped	Cover Material	Nitrile/Styrene Butadiene Rubber (SBR)
Media	Fuels (Crude Oil)	Weight	1.29 lb/ft
Minimum Bend Radius	6.2 inch	Hose Reinforcement Material	3 Plies of Textile with Wire Helix
Maximum Working Pressure (psi)	150	Hose I.D. (inch)	2-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
