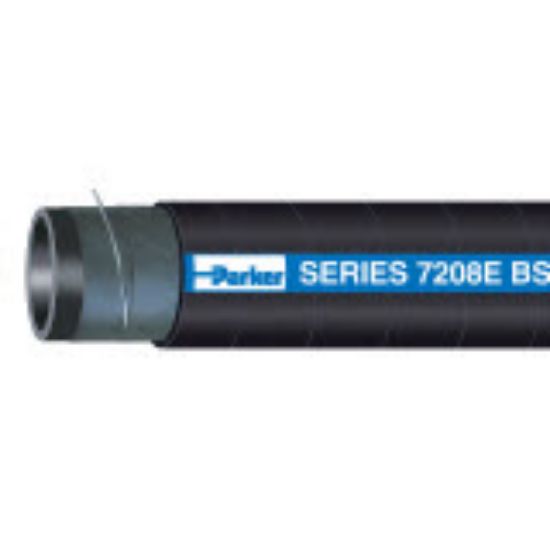

Parker 7208E-4000200 - BS&W™ Bottom Sediment & Waste Oilfield Suction/Vacuum Hose, Series 7208E

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7208E-4000200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Media	Water	Specifications Met	N/A
Application	Oilfield	Cover Color	Black
Compatible Fitting	n/a	Minimum Operating Temperature	-22
Maximum Operating Pressure	150	Minimum Bend Radius	16
Inside Diameter	4	Maximum Operating Temperature	185
Outside Diameter	4.570	Hose Inner Tube Material	n/a
Weight	4.76	Cover Material	Nitrile/Styrene Butadiene Rubber (SBR)
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Vacuum Pressure Rating	Full
Maximum Working Pressure (psi)	150	Hose I.D. (inch)	4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
