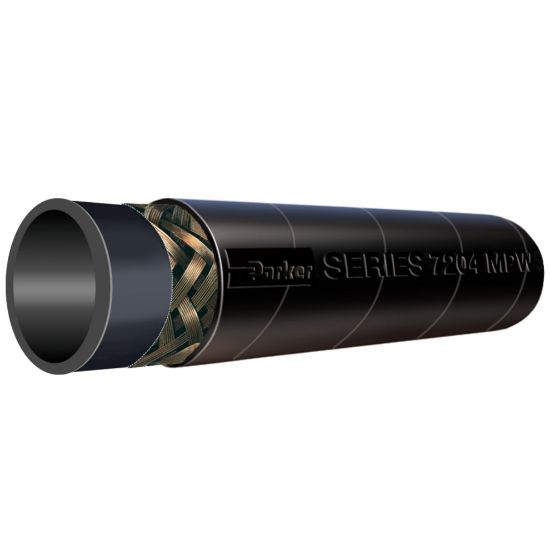

Parker 7204-751 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7204-751

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	N/A
Length per Package	500 ft	Cover Color	Black
Inside Diameter	19.1 mm	Maximum Operating Pressure	68.9 bar
Package Type	Reel	Hose Inner Tube Material	Black
Compatible Fitting	43 Series	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Cover Material	Chloroprene Rubber (CR)	Minimum Bend Radius	254 mm
Minimum Operating Temperature	-20 °F	Weight	0.52 lb/ft
Application	Multipurpose	Cover Structure	Perforated
Hose Reinforcement Material	1 Braid of Wire	Outside Diameter	1.187 inch
Maximum Operating Temperature	70 °C (Saturated Steam to 187 @10 bar)	Hose I.D. (inch)	3/4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
