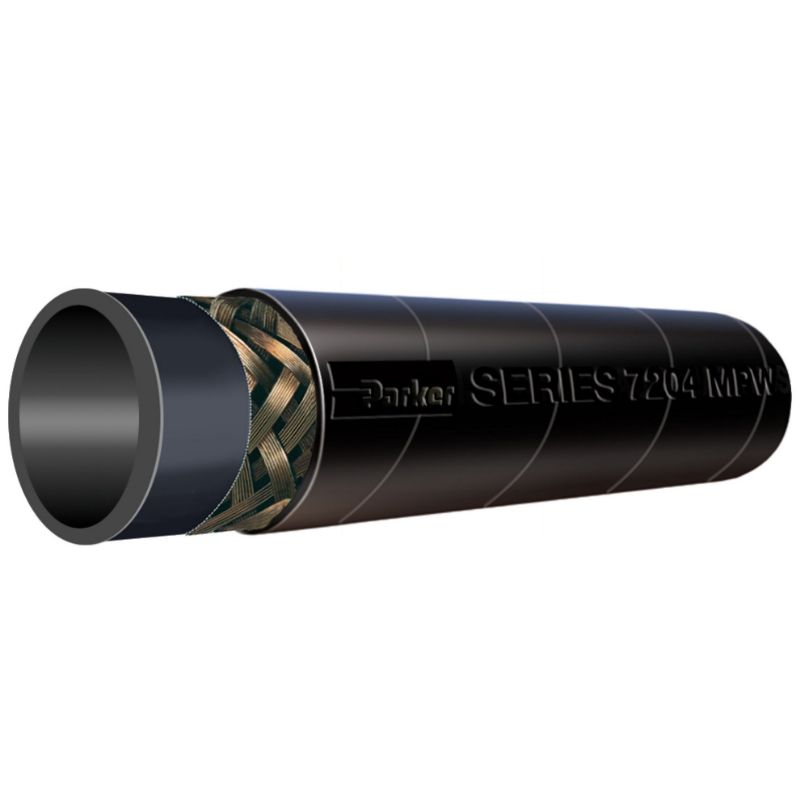

Parker 7204-1001 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204

AFP Availability:	Quote Required
Partner Available:	862 In Stock

Brand Parker

Part No. 7204-1001

$19.78/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.75 lb/ft
Hose Reinforcement Material	1 Braid of Wire	Length per Package	500 ft
Minimum Bend Radius	304.8 mm	Application	Air
Cover Material	Chloroprene Rubber (CR)	Specifications Met	n/a
Inside Diameter	1 inch	Outside Diameter	1.500 inch
Cover Structure	Wrapped	Maximum Operating Pressure	68.9 bar
Media	Hot Asphalt (Tar)	Cover Color	Black
Maximum Operating Temperature	70 °C (Saturated Steam to 187 @10 bar)	Division	Hose Products Division
Minimum Operating Temperature	-20 °F	Hose Inner Tube Material	Nitrile
Package Type	Reel	Compatible Fitting	43 Series
Hose I.D. (inch)	1
