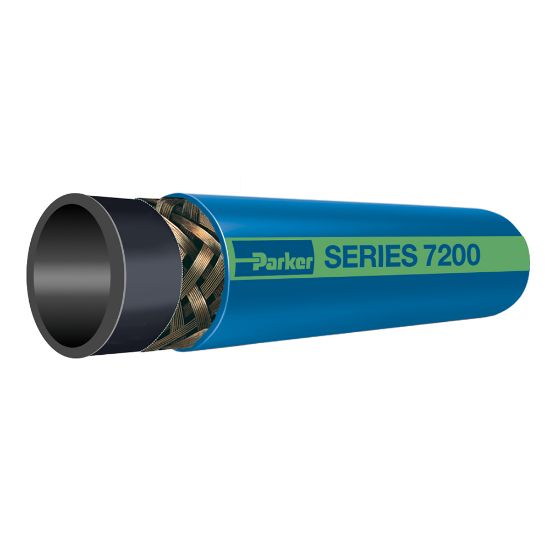

Parker 7200-751050 - Hydrocarbon High Temperature Oil Resistant Drain Hose, Series 7200

Hydrocarbon High Temperature Oil Resistant Drain Hose is designed to drain/evacuate hot liquefied residue from storage tanks/vessels generated by cleaning applications to 350°F and 350 psi, Series 7200

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7200-751050

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Water
Specifications Met	N/A	Cover Color	Blue
Maximum Operating Pressure	1.7 MPa	Inside Diameter	19.1 mm
Weight	0.77 kg/m	Application	Manufacturing
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Minimum Operating Temperature	-20 °F	Outside Diameter	30.1 mm
Hose Reinforcement Material	1 Braid of Wire	Minimum Bend Radius	241.3 mm
Maximum Operating Temperature	149 °C	Hose I.D. (inch)	3/4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
