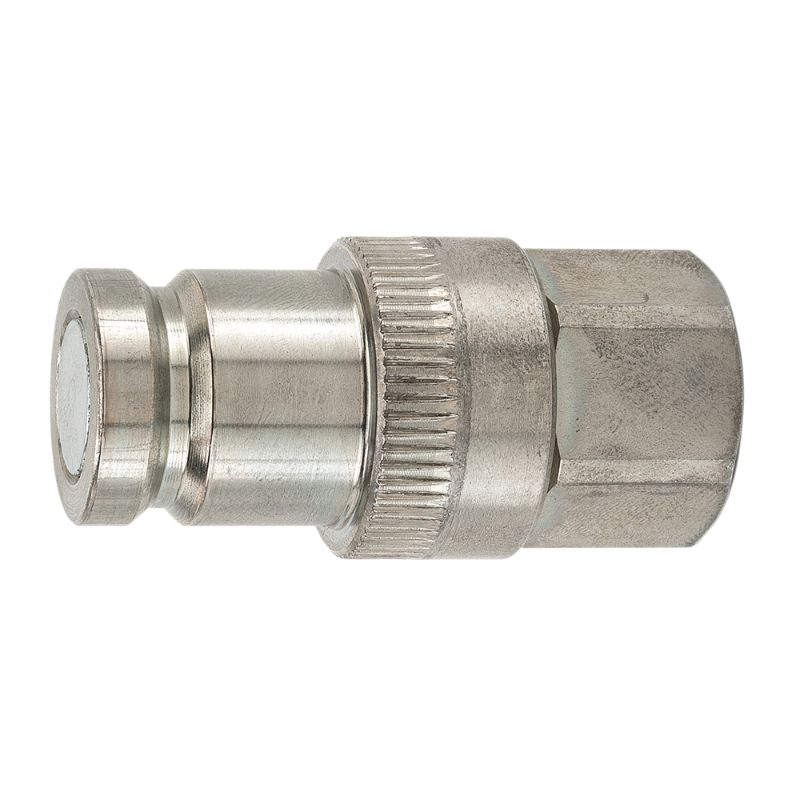

Parker 71N32-24EF - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71N32-24EF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Valve Type	Non-spill	Product Type	Push to Connect
Dimensional Weight	1.7249784172661868 lb	Hex Size	3.25 inch
Body Material	Steel	Body Material	Steel
Coupling Half	Male Nipple	Body Size (inch)	2
Connection Thread Size (inch)	1 7/8 - 12	Connection Type	Female UNF
Maximum Operating Pressure	5000

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
