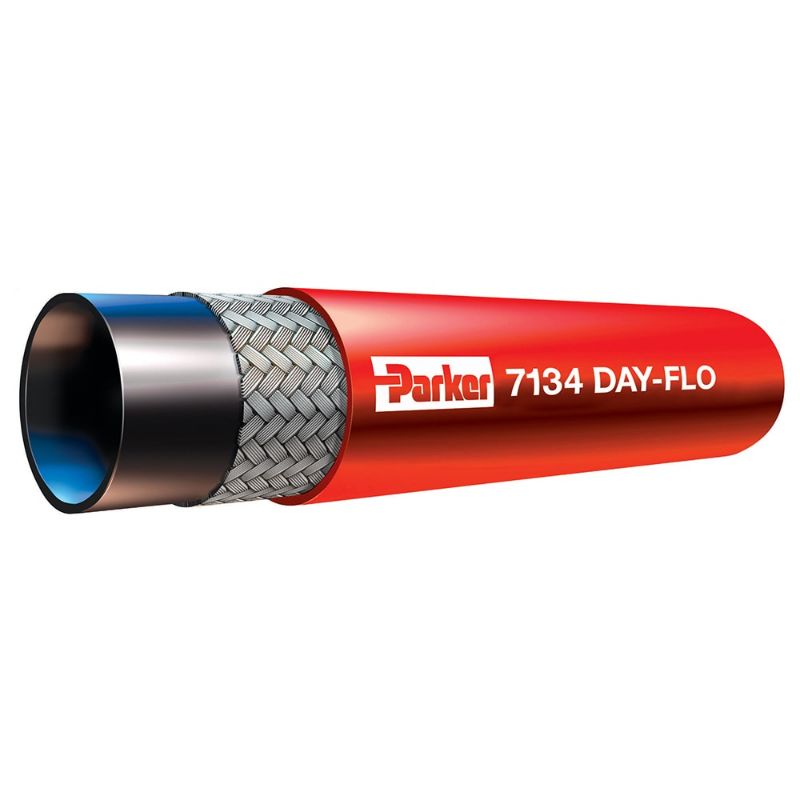

Parker 7187-191 - DAY-FLO® MULTIPURPOSE OIL RESISTANT HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	650 In Stock

Brand Parker

Part No. 7187-191

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Air
Division	Hose Products Division	Maximum Operating Pressure	17.2 bar
Specifications Met	N/A	Weight	0.12 kg/m
Minimum Bend Radius	2 inch	Application	Air
Outside Diameter	0.440 inch	Size	-3
Inside Diameter	3/16 inch	Cover Material	Chloroprene Rubber (CR)
Hose Inner Tube Material	Nitrile	Hose Reinforcement Material	1 Braid of Textile
Minimum Operating Temperature	-20 °F	Maximum Operating Temperature	158 °F (Air)
Nominal Hose Inside Diameter	7 mm	Color	Black
Hose I.D. (inch)	3/16	Maximum Working Pressure (psi)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
