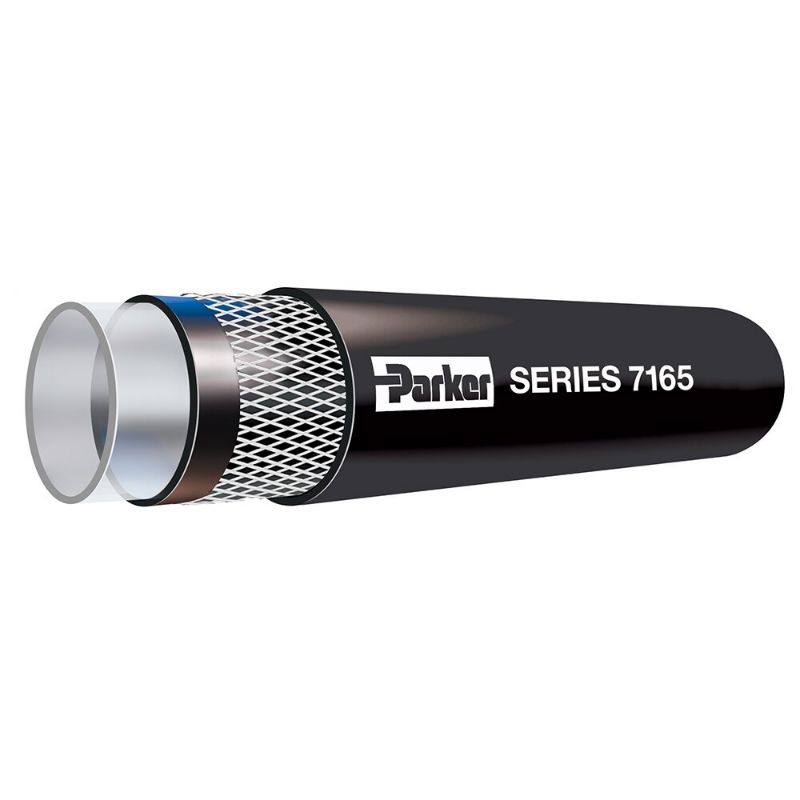

Parker 7165-38250 - WAVEMASTER™ Marine Barrier Fuel Line Hose, Series 7165

Wavemaster Marine Barrier Fuel Line Hose is designed for marine engine fuel line and venting in applications to 212°F and 100 psi, Series 7165

AFP Availability:	Quote Required
Partner Available:	1246 In Stock

Brand Parker

Part No. 7165-38250

$4.36/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Application	Marine
Minimum Operating Temperature	-20	Hose Inner Tube Material	Translucent
Weight	0.16	Maximum Operating Pressure	7
Cover Material	Nitrile/PVC	Specifications Met	ABYC
Minimum Bend Radius	3	Hose Reinforcement Material	2 Plies of Textile
Cover Color	Black	Outside Diameter	0.700
Inside Diameter	3/8	Media	Fuels - Check fuel type with our catalogue chart.
Maximum Operating Temperature	212	Division	Hose Products Division
Hose I.D. (inch)	3/8

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

EPA Certificate of Conformity--Series 7165-CURRENT YEAR (PDF)
