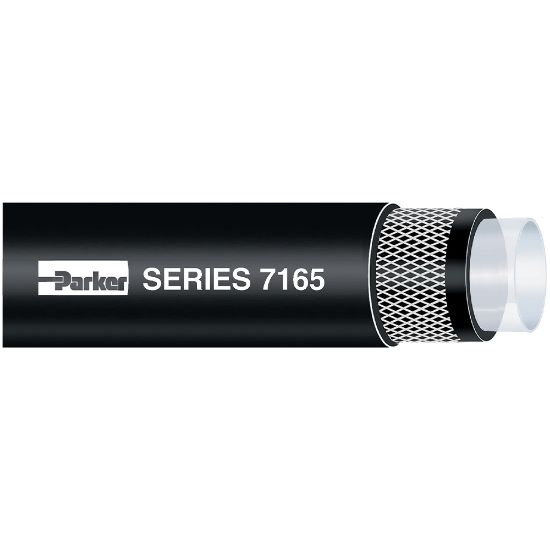

Parker 7165-31250 - WAVEMASTER™ Marine Barrier Fuel Line Hose, Series 7165

Wavemaster Marine Barrier Fuel Line Hose is designed for marine engine fuel line and venting in applications to 212°F and 100 psi, Series 7165

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7165-31250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	212
Minimum Bend Radius	3	Minimum Operating Temperature	-20
Cover Color	Black	Maximum Operating Pressure	7
Inside Diameter	5/16	Hose Reinforcement Material	2 Plies of Textile
Weight	0.13	Application	Marine
Media	Fuels - Check fuel type with our catalogue chart.	Outside Diameter	0.600
Cover Material	Nitrile/PVC	Hose Inner Tube Material	Translucent
Specifications Met	ABYC	Hose I.D. (inch)	5/16

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

EPA Certificate of Conformity--Series 7165-CURRENT YEAR (PDF)
