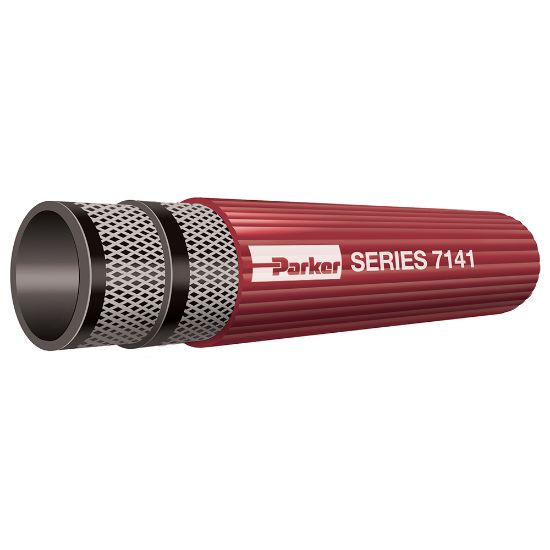

Parker 7141-75200 - Grade T Single Line Fuel Gas Welding Hose, Series 7141

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7141-75200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Cover Color	Red	Maximum Operating Temperature	93 °C
Maximum Operating Pressure	200 psi	Inside Diameter	3/4 inch
Cover Structure	Smooth	Package Type	Reel
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Media	Natural Gas	Minimum Bend Radius	152.4 mm
Application	Welding	Length per Package	400 ft
Specifications Met	CGA E-1	Weight	0.43 lb/ft
Outside Diameter	1.160 inch	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	200

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
