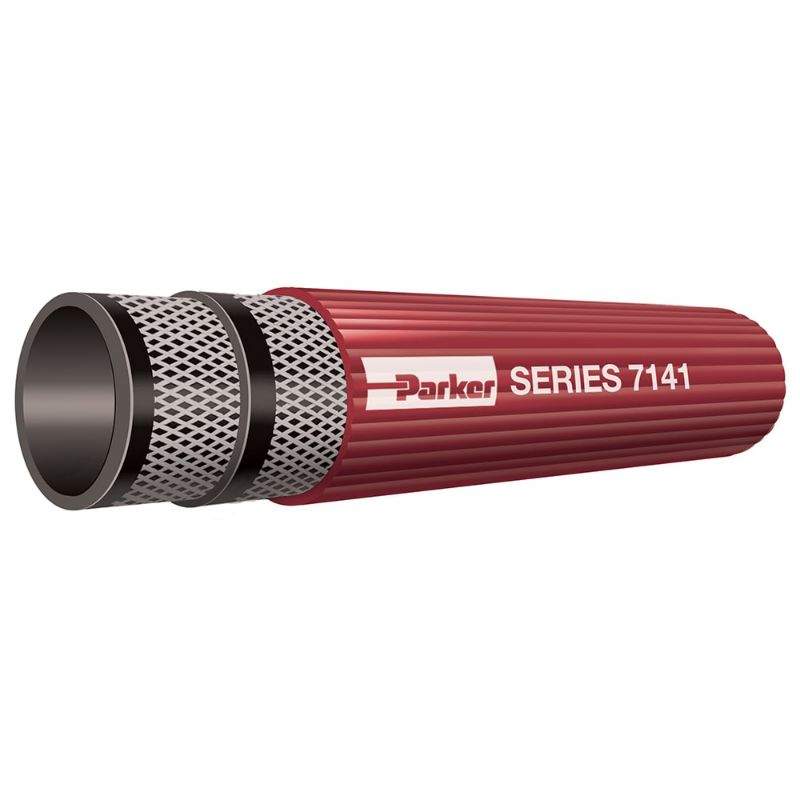

Parker 7141-19200 - Grade T Single Line Fuel Gas Welding Hose, Series 7141

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7141-19200

$2.19

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Weight	0.12 kg/m
Cover Color	Red	Minimum Bend Radius	50.8 mm
Maximum Operating Temperature	200 °F	Maximum Operating Pressure	200 psi
Outside Diameter	0.440 inch	Inside Diameter	4.8 mm
Hose Reinforcement Material	2 Plies of Textile	Package Type	Reel
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Cover Structure	Longitudinal Ribs	Cover Material	Chloroprene Rubber (CR)
Media	Natural Gas	Application	Welding
Specifications Met	CGA E-1	Length per Package	800 ft
Hose I.D. (inch)	3/16	Maximum Working Pressure (psi)	200

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
