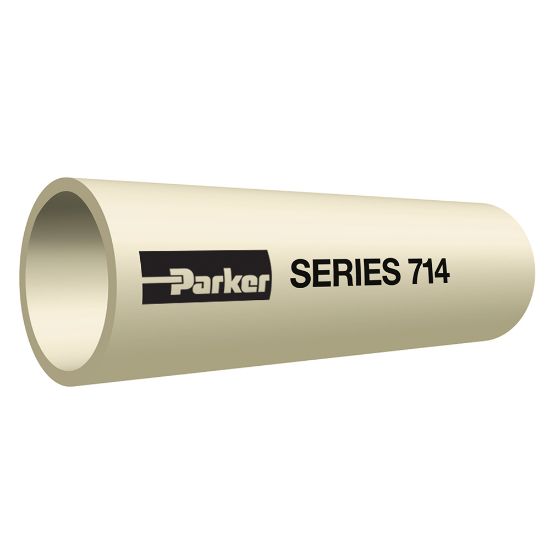

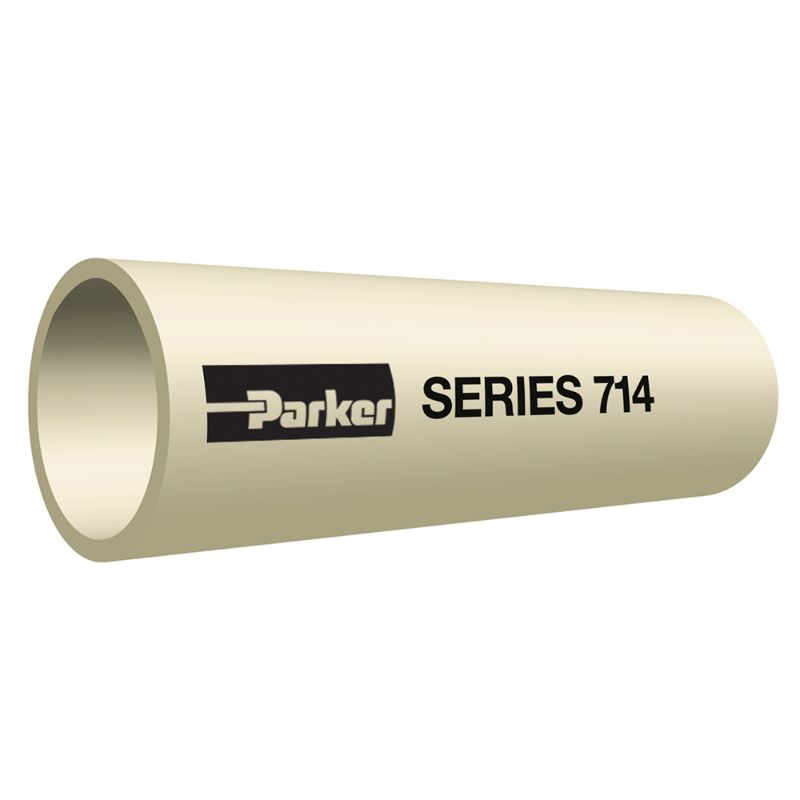

Parker 714-03060102 - NEXSYN™ EPDM/TPV Tubing, Series 714

Nexsyn EPDM/TPV Tubing is designed for transfer of air, beverages, food, mild chemicals, sanitary products and potable water in applications to 180°F and 40 psi, Series 714

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 714-03060102

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Length per Package	100
Vacuum Pressure Rating	Light	Color	Natural
Minimum Operating Temperature	-75	Tube Outside Diameter	3/8
Maximum Operating Temperature	180	Package Type	Carton
Media	Acids	Weight	3.5
Durometer	64	Application	EPDM/TPV Tubing General Purpose
Specifications Met	NSF 61 (certified to 212°F / 100°C)	Tube Inside Diameter	3/16
Maximum Operating Pressure	40	Tube I.D. (inch)	3/16
Tube O.D. (inch)	3/8	Maximum Working Pressure (psi)	40
