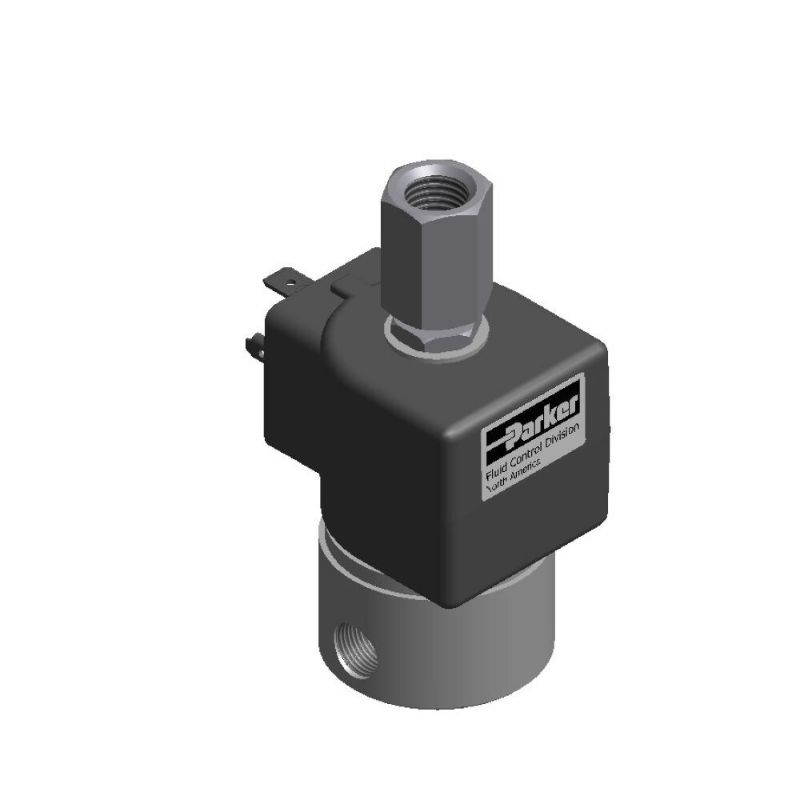

Parker 71335SN2ANJ1N0D100Q3 - Parker 3-Way Multi-Purpose, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Multi-Purpose, 1/4" NPT Solenoid Valves provide operating pressures up to 400 psi and flow factors up to 0.31 CV's. They offer stainless steel or brass bodies and various coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71335SN2ANJ1N0D100Q3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Division	Fluid Control Division	Media	General Purpose for Air
Coil Type	DIN Form A, Class F	Valve Type	3-Way
Input Voltage	220/50 to 240/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	3	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Maximum Fluid Temperature	185
Power Consumption	10 W (AC)	Exhaust Orifice Size	1/32
Main Orifice Size	1/32	Product Series	7000 Series
Additional Options	Exhaust Adapter Nut	Function	Multipurpose
Body Material	Stainless Steel 430 F	Main Flow Coefficient	0.024
Exhaust Flow Coefficient	0.024	Maximum Pressure Differential	400 psi (AC)
Coil Type	DIN Form A, Class F	Voltage (V)	220/50-240/60
Seal Material	NBR	Power (Watts)	10 Watt (AC)
Orifice Main (inch)	1/32	Mechanical Option	Exhaust Adapter Nut
Body Material	430F Stainless	Flow Factor Main (Cv)	0.024
Maximum Pressure Differential (psi)	400 psi (AC)
