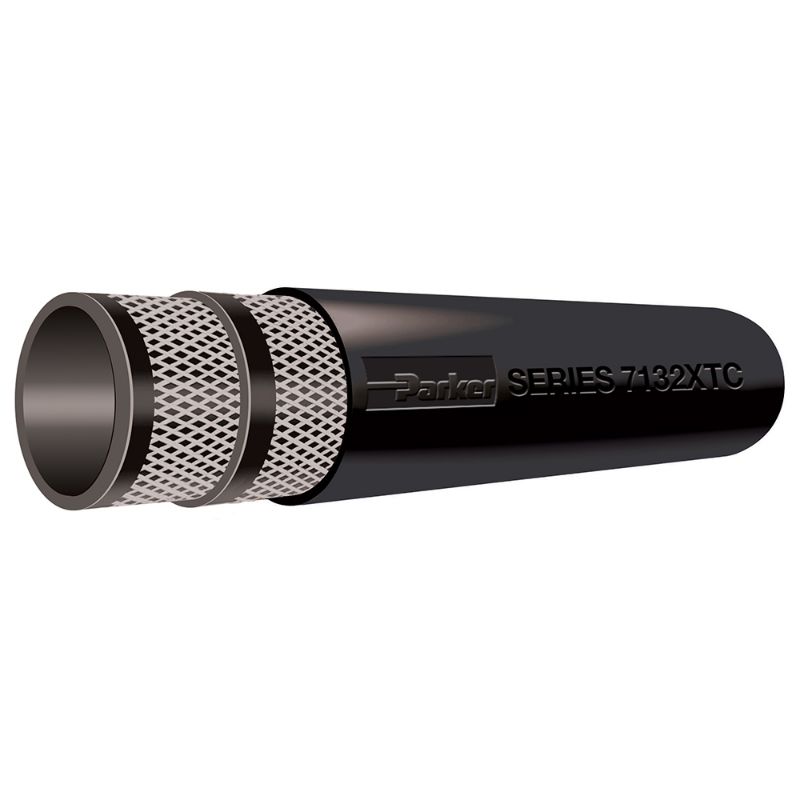

Parker 7132XTC-1000125 - X-TREME™ Low Temperature Liquid Petroleum Gas LPG Hose, Series 7132XTC

X-treme Low Temperature Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to -65°F and 350 psi, Series 7132XTC

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7132XTC-1000125

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Bend Radius	8 inch
Outside Diameter	1.5 inch	Cover Color	Black
Inside Diameter	1 inch	Minimum Operating Temperature	-53 °C
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Weight	0.63 lb/ft	Cover Material	Chloroprene Rubber (CR)
Maximum Operating Temperature	82 °C	Maximum Operating Pressure	24.1 bar
Package Type	Carton	Compatible Fitting	7661 Series
Cover Structure	Perforated	Media	LPG
Application	Liquefied Petroleum Gas (LPG)	Specifications Met	CSA 8.1, Type I
Hose I.D. (inch)	1	Standard Pack Qty (ft)	1 x 125
Maximum Working Pressure (psi)	350

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
