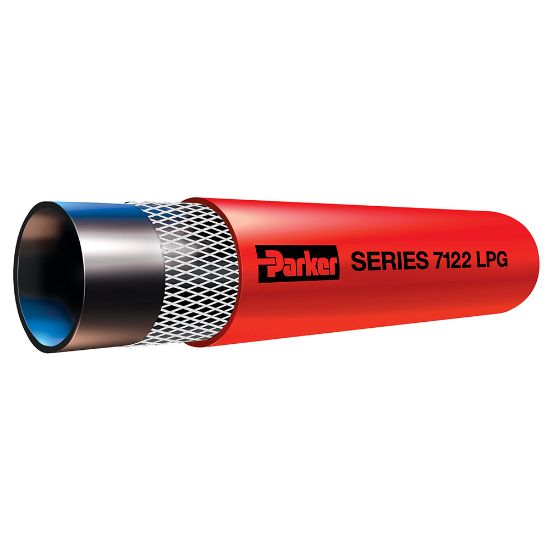

Parker 7122-38200 - Liquid Petroleum Gas Vapor Hose, Series 7122

Liquid Petroleum Gas Vapor Hose is designed for light duty propane vapor line service light duty in applications to 140°F and 125 psi, Series 7122

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7122-38200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Inside Diameter	3/8 inch
Specifications Met	N/A	Weight	0.22 kg/m
Cover Color	Red	Hose Reinforcement Material	2 Plies of Textile
Package Type	Reel	Maximum Operating Temperature	160 °F
Maximum Operating Pressure	125 psi	Cover Material	Chloroprene Rubber (CR)
Compatible Fitting	HY Series	Hose Inner Tube Material	Nitrile
Outside Diameter	0.656 inch	Length per Package	700 ft
Media	Propane (Vapor Only)	Application	Petroleum
Cover Structure	Perforated	Minimum Bend Radius	3.8 inch
Minimum Operating Temperature	-29 °C	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	125
