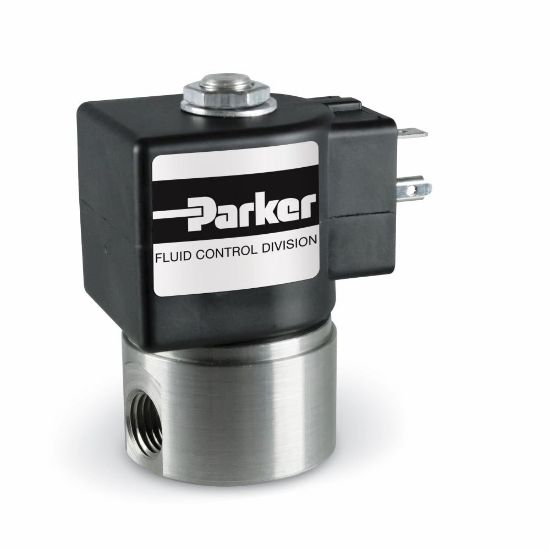

Parker 71216SN2FU00N0D100B2 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71216SN2FU00N0D100B2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4 inch
Division	Fluid Control Division	Body Material	Stainless Steel
Input Voltage	24/60	Actuation Type	Direct Acting
Media	General Purpose	Function	Normally Closed
Minimum Pressure Differential	0.0 psi	Insulation Class	Class F
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Preventive Maintenance Kit	n/a
Orifice Size	3/64 inch	Coil Type	D100B2
Seal Material	RULON	Power Consumption	10.0 W
Maximum Fluid Temperature	185.0 °F	Maximum Pressure Differential	1500.0 psi
Installation	IOM 7206	Main Flow Coefficient	0.037 Cv
Maximum Ambient Temperature	150.0 °F	Port Type	NPT
Body Material	Stainless Steel	Media	General Purpose
Function	Normally Closed	Input Voltage	24/60
Insulation Class	Class F	Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	0.0	Coil Type	D100B2
Seal Material	RULON	Port Size	1/4
Installation	IOM 7206	Orifice Size	3/64
Actuation Type	Direct Acting	Power Consumption	10.0
Main Flow Coefficient	0.037	Maximum Fluid Temperature	185.0
Preventive Maintenance Kit	N/A	Maximum Ambient Temperature	150.0
Maximum Pressure Differential	1500.0
